Lot# 120
Location: Breckenridge, TX
Closed on:
October 18, 2022 | 12:30PM CDT
DESCRIPTION

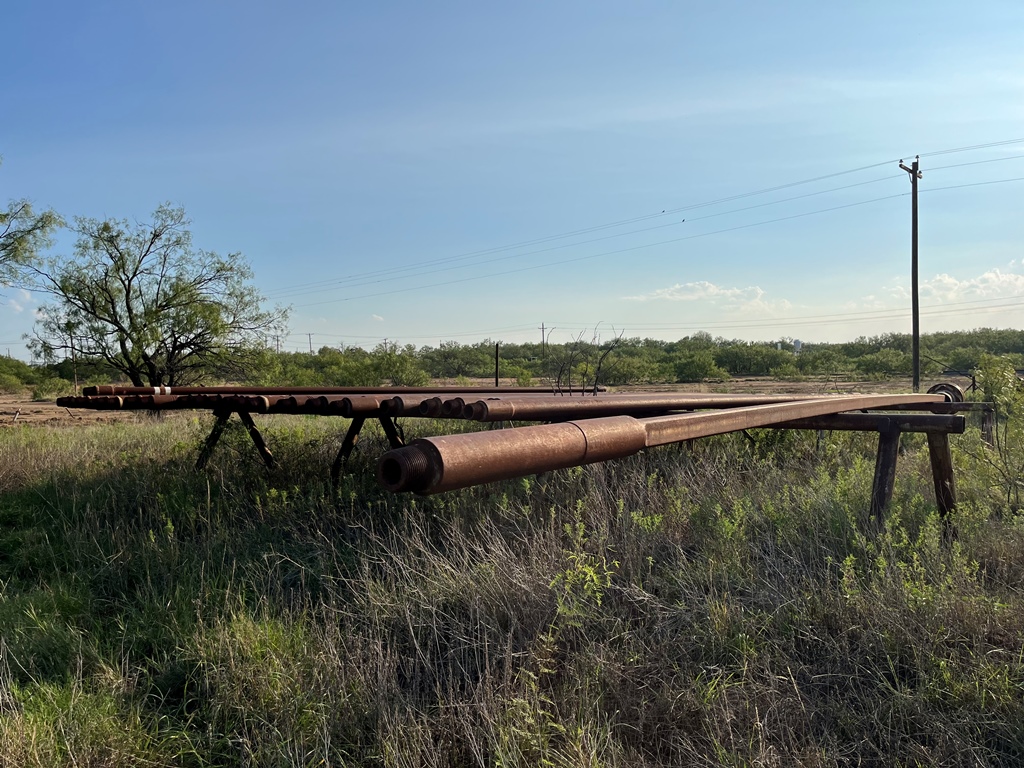

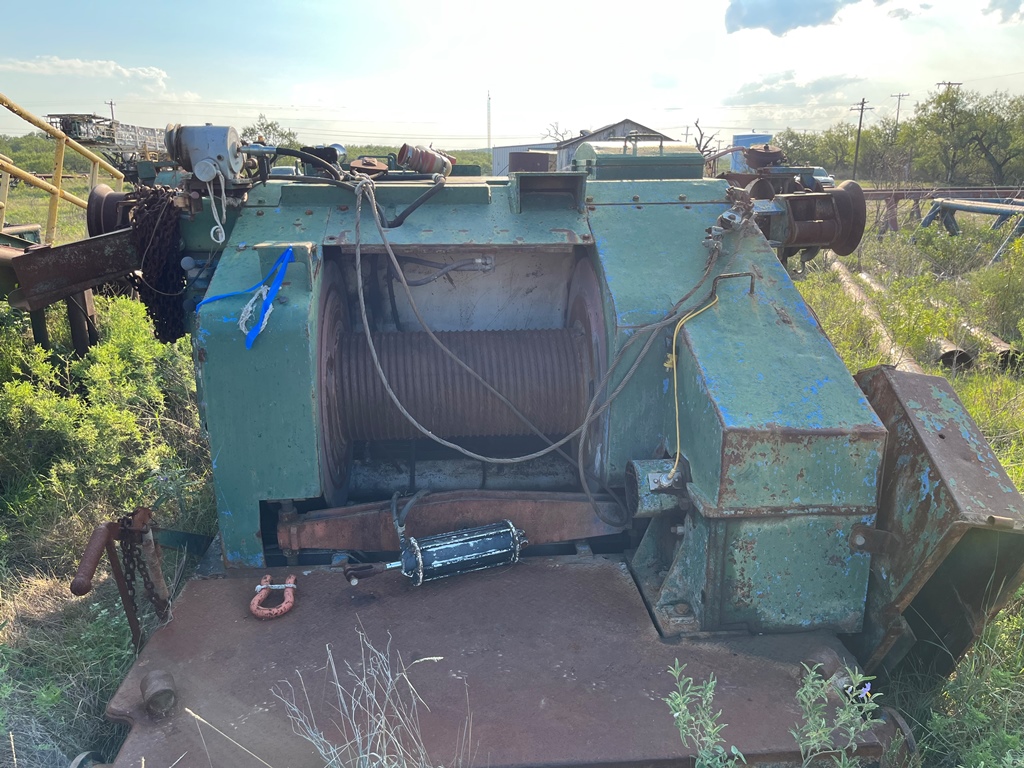

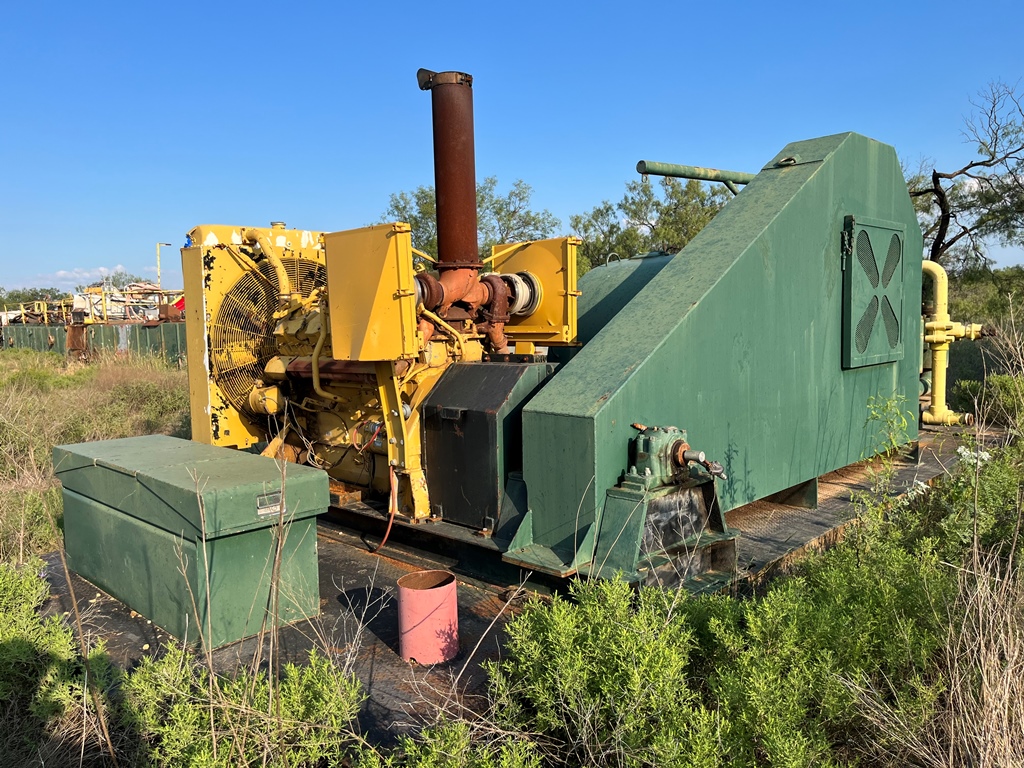

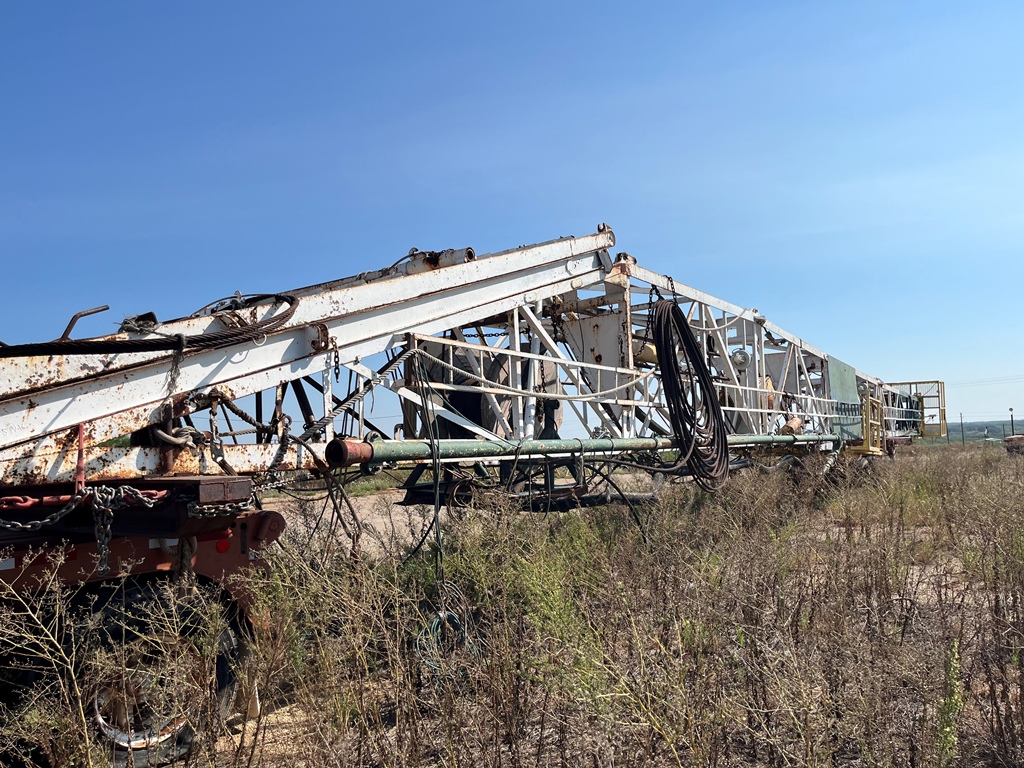

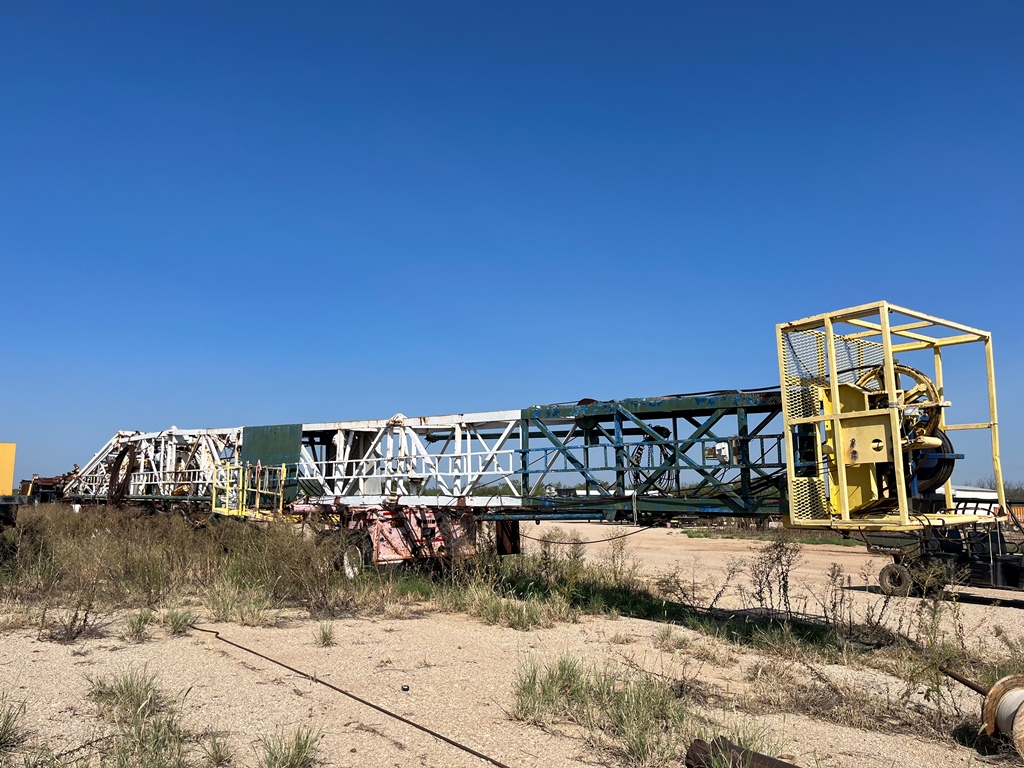

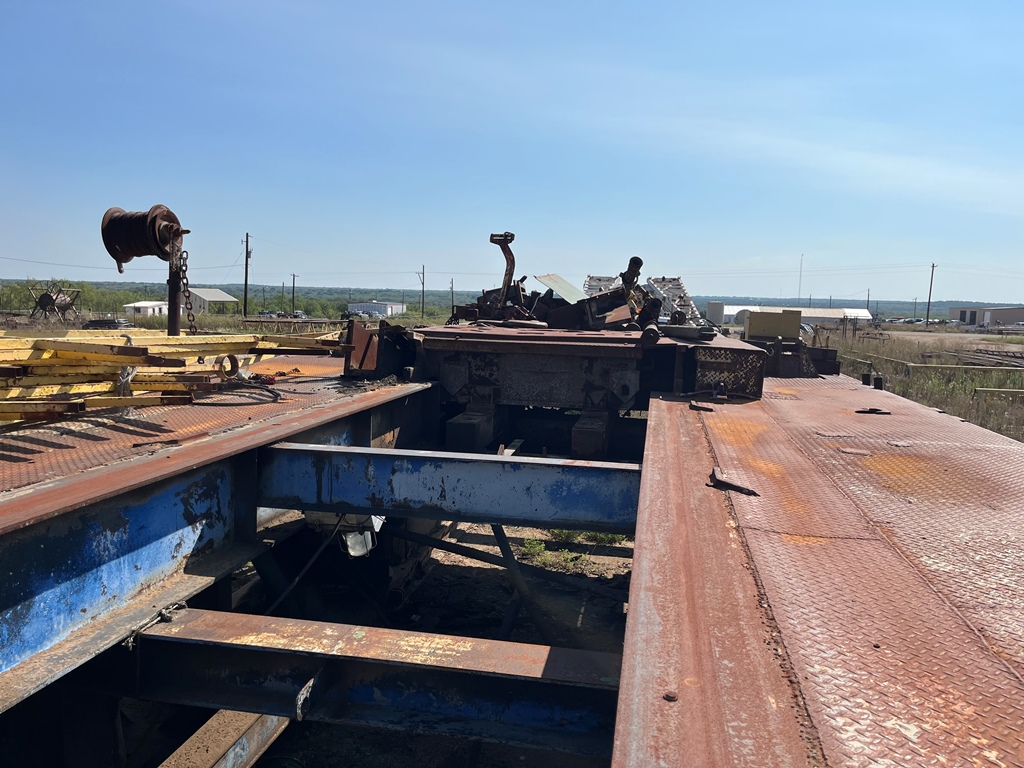

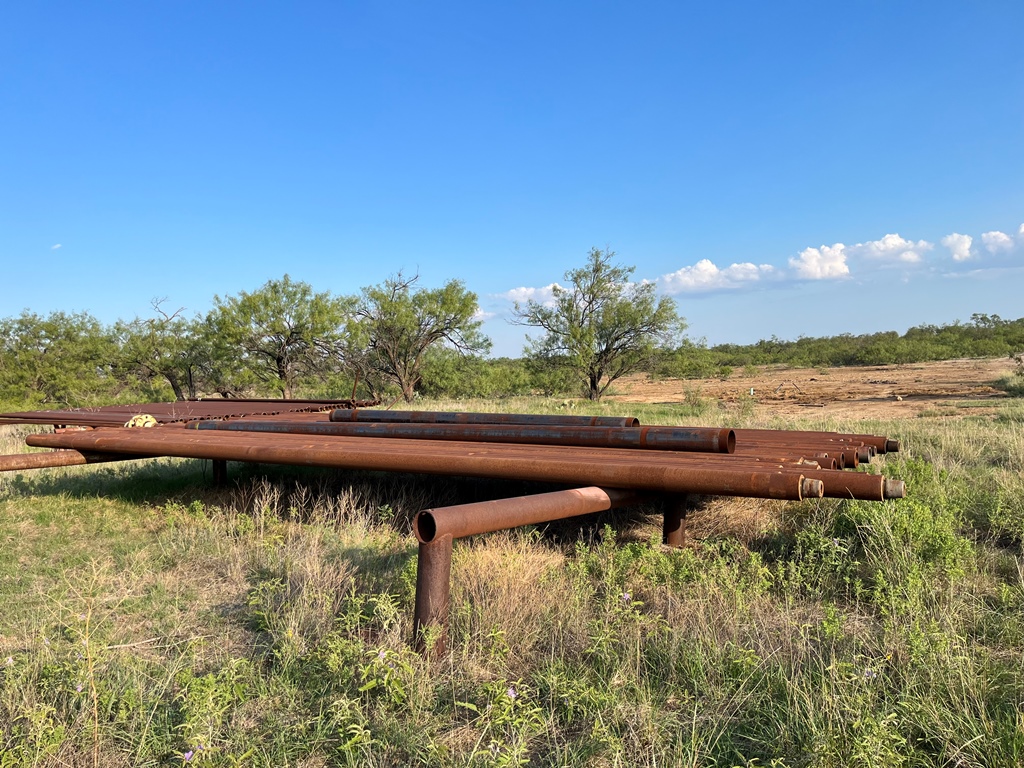

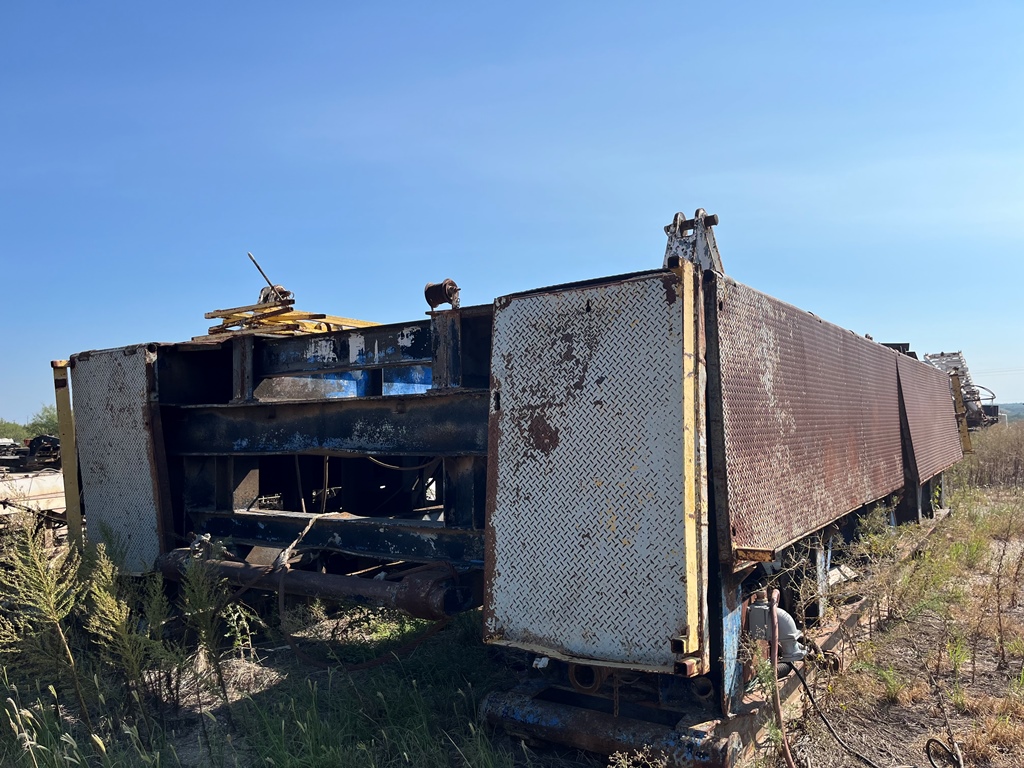

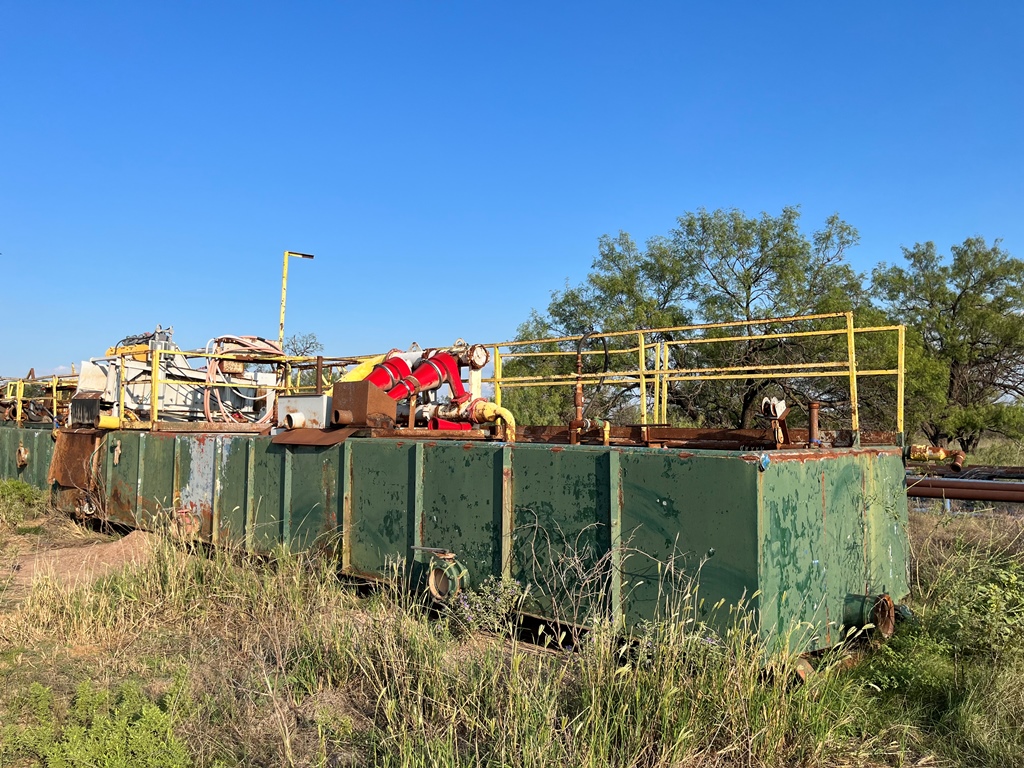

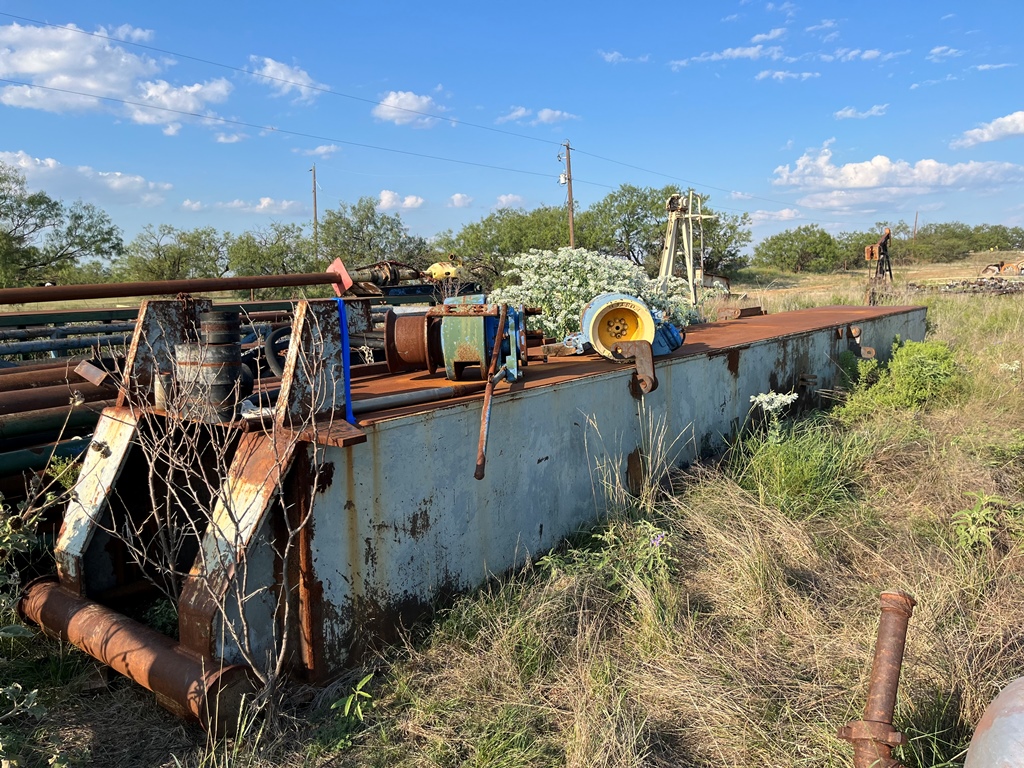

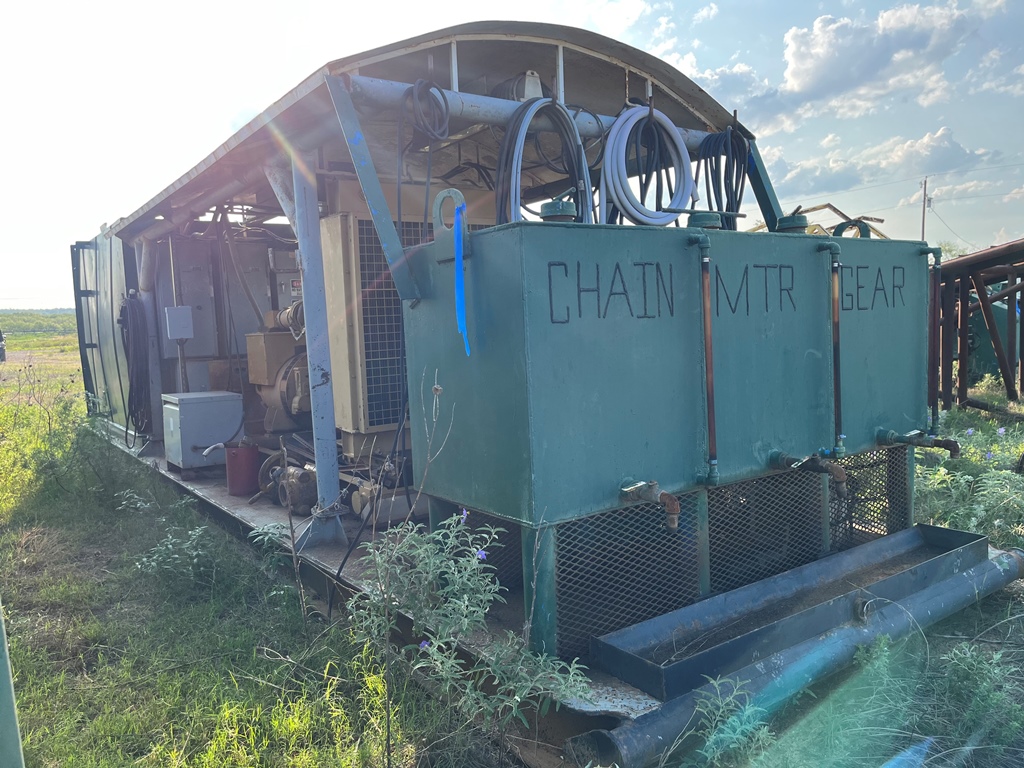

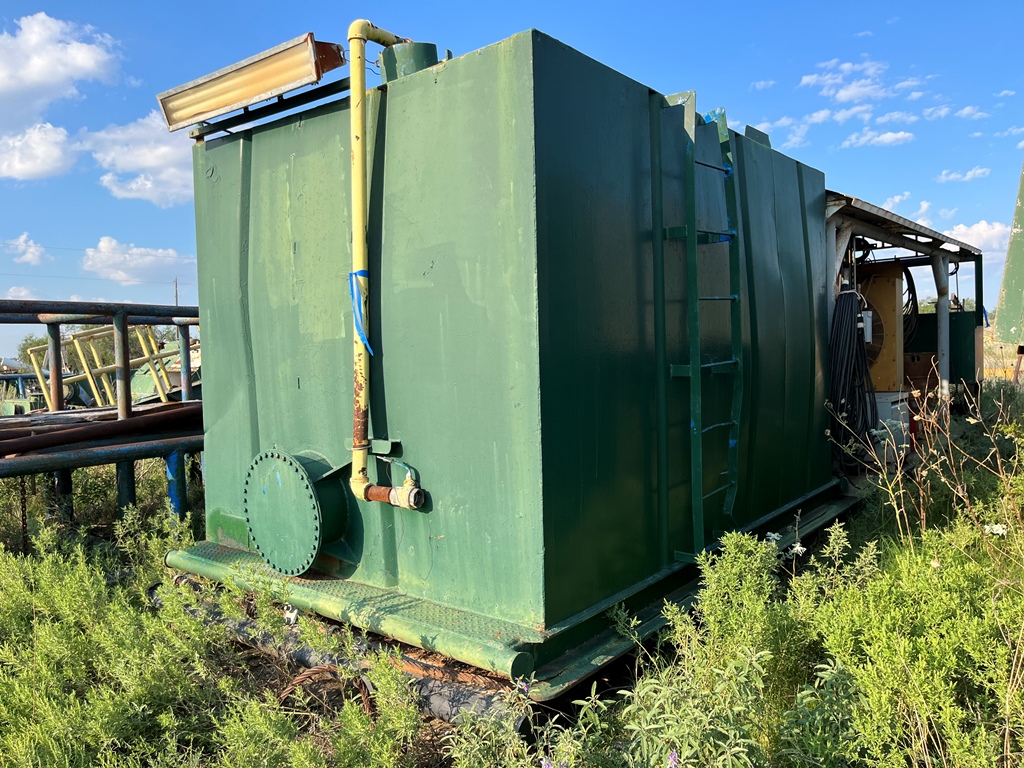

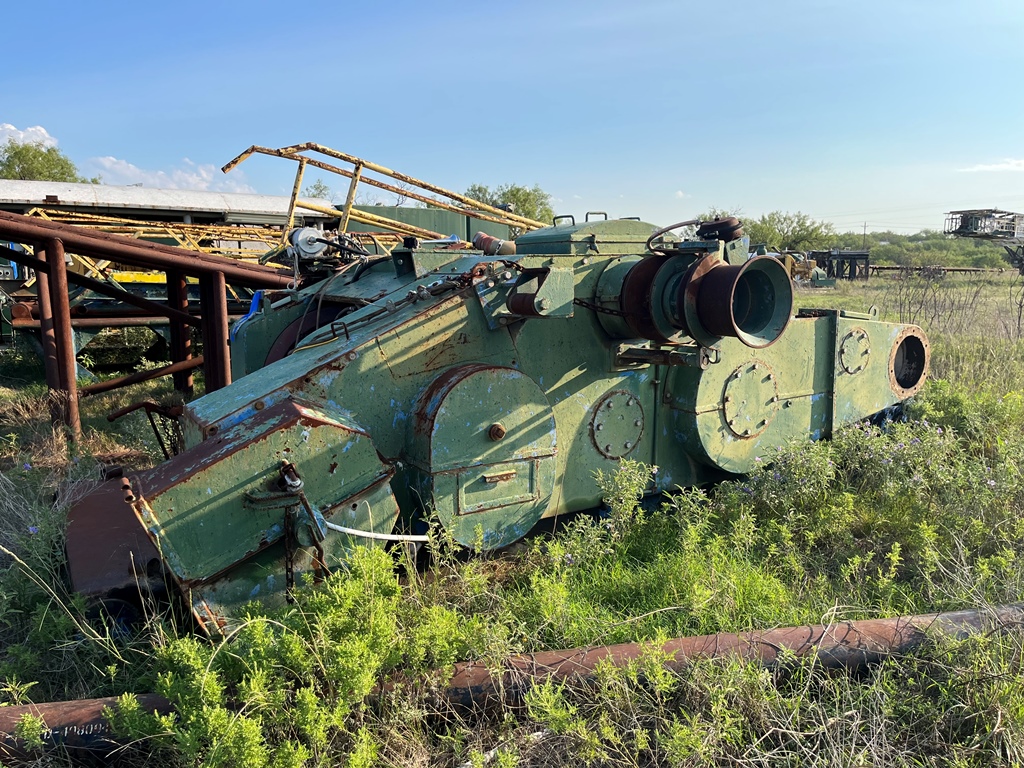

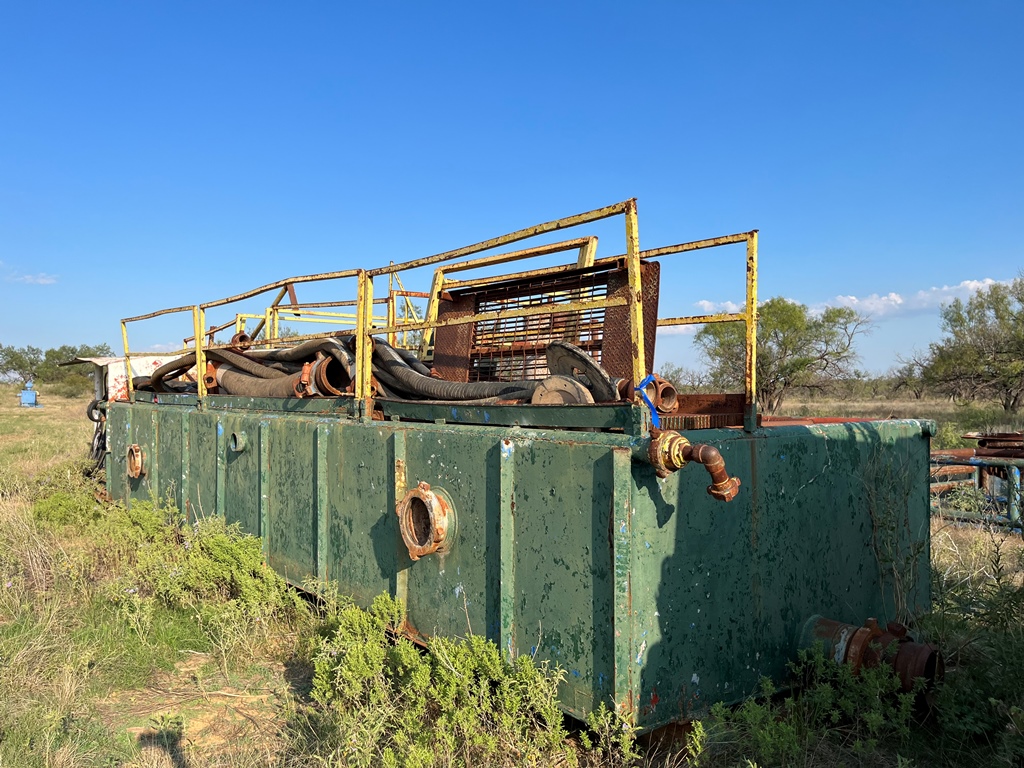

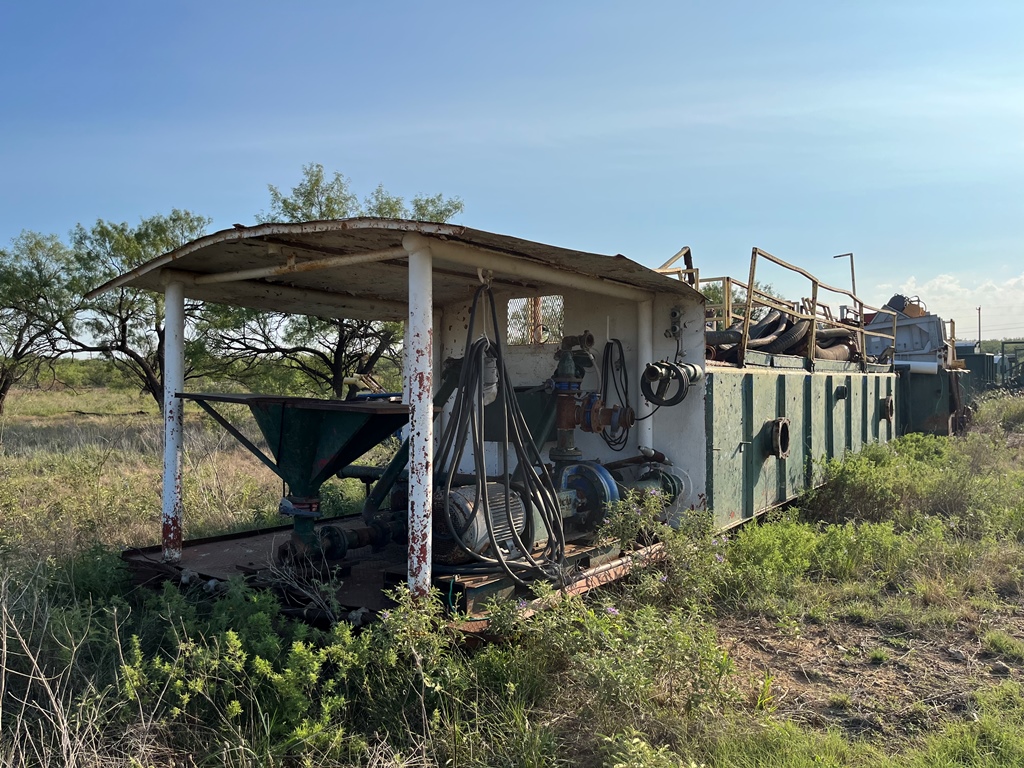

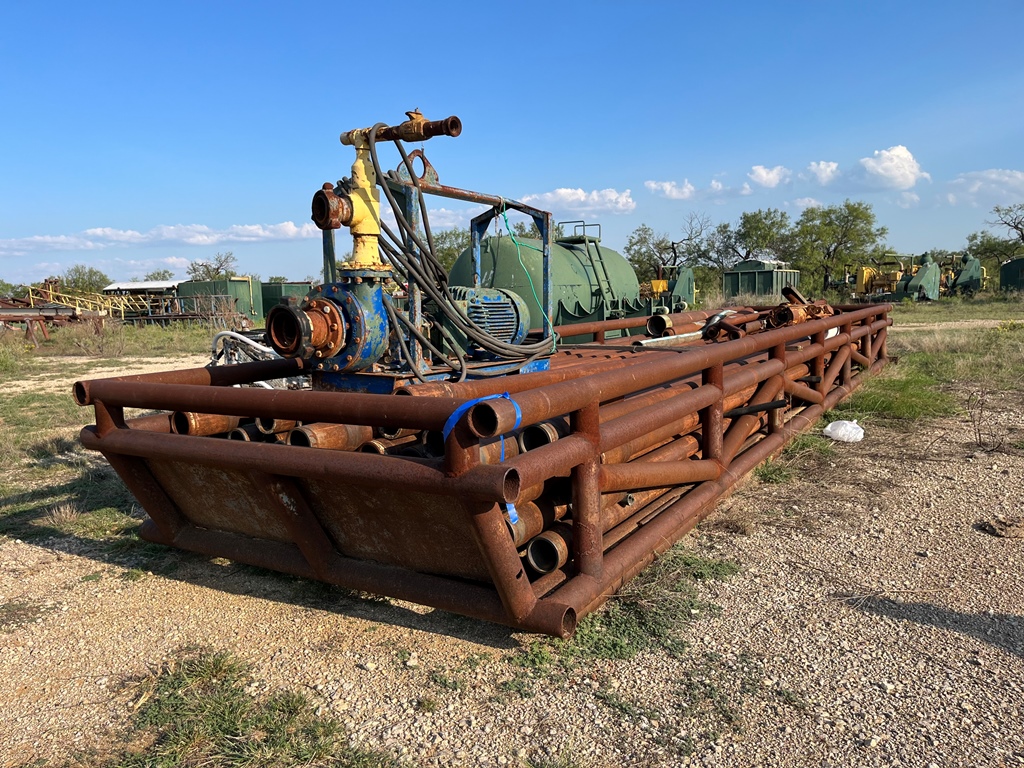

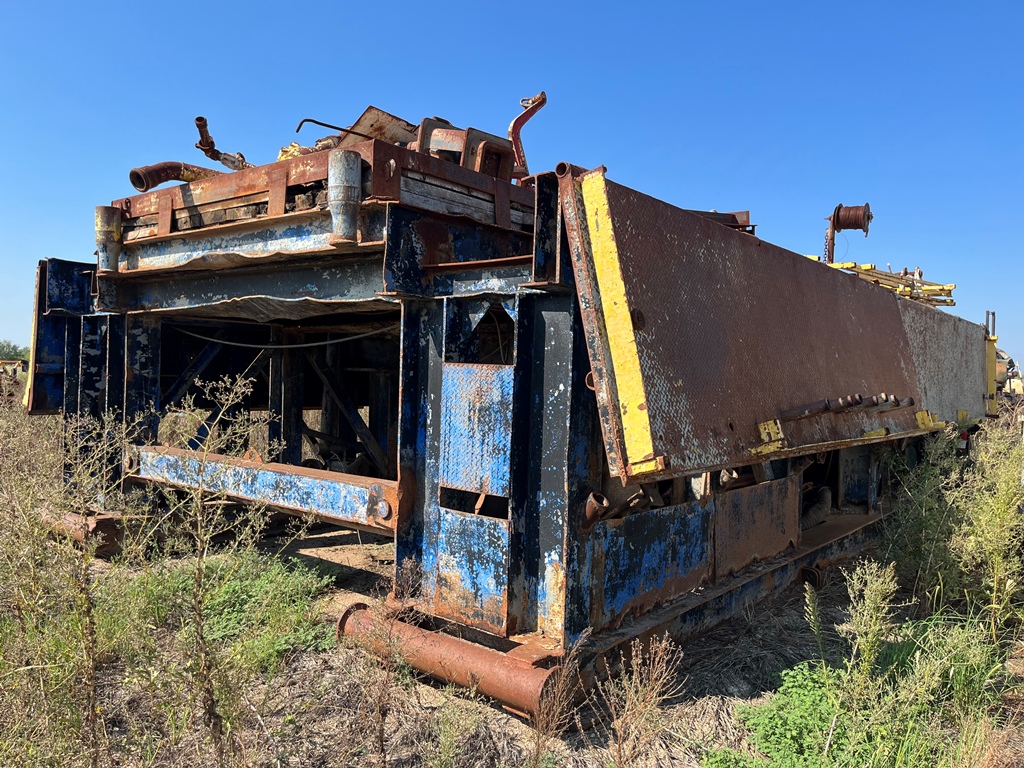

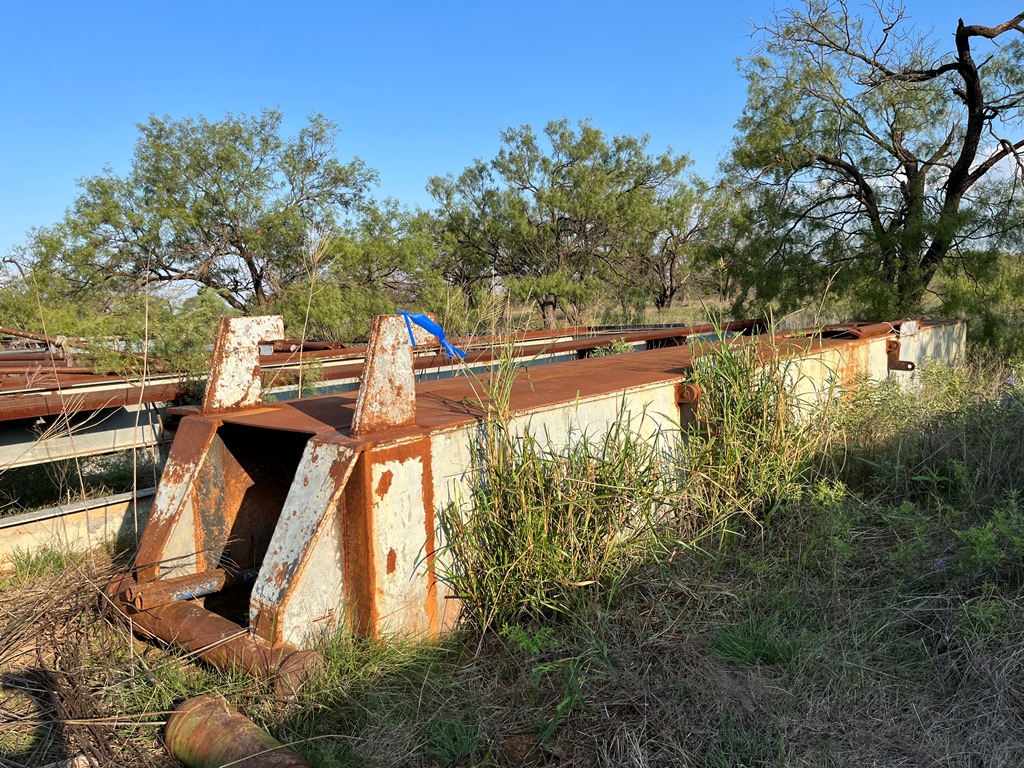

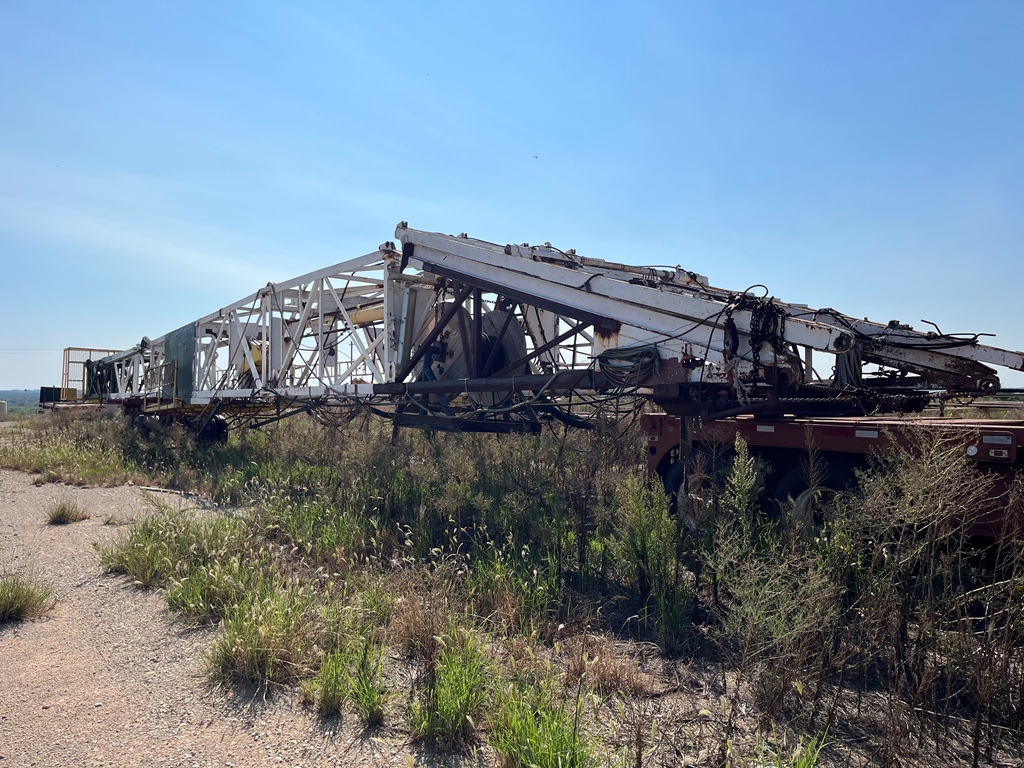

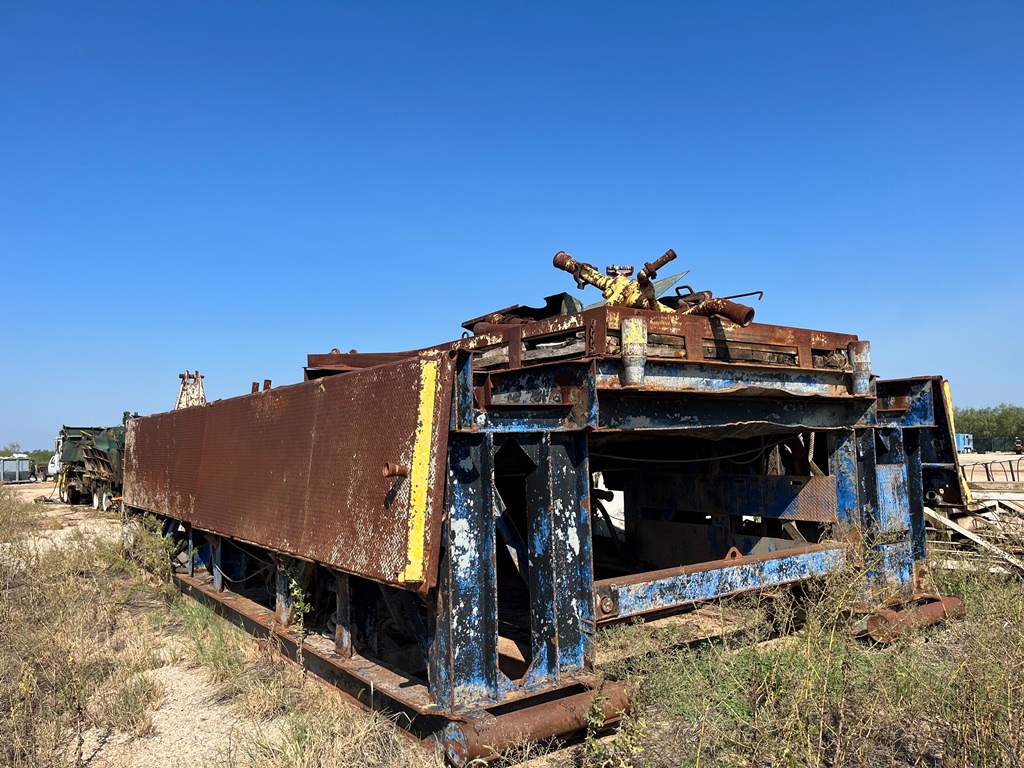

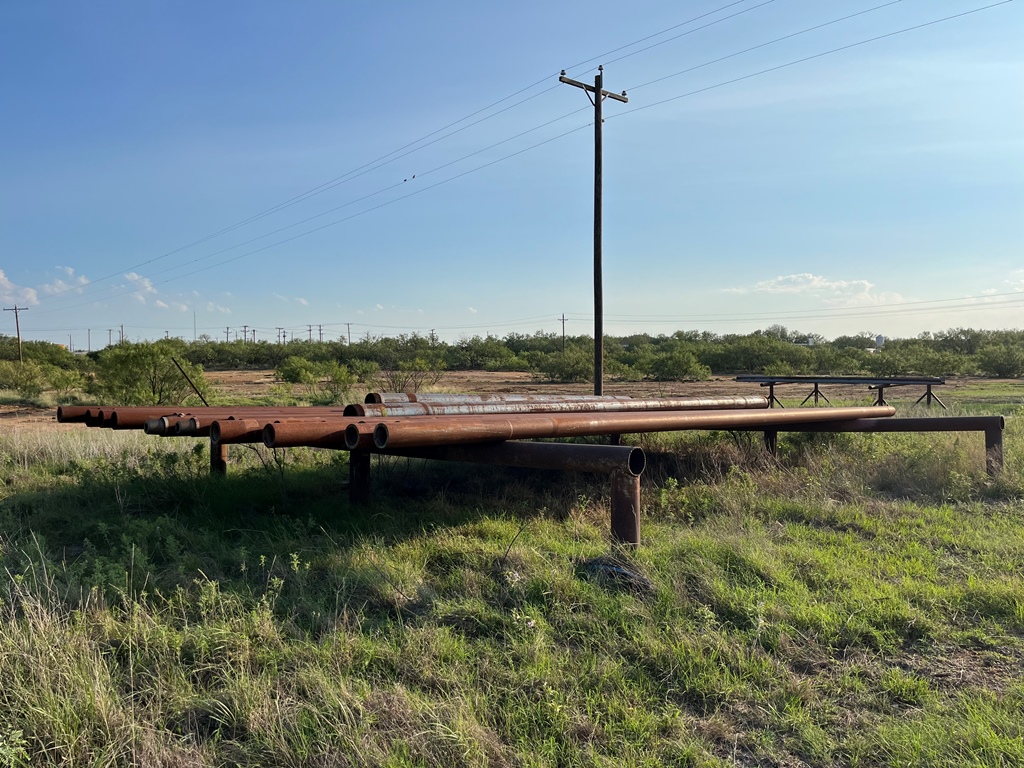

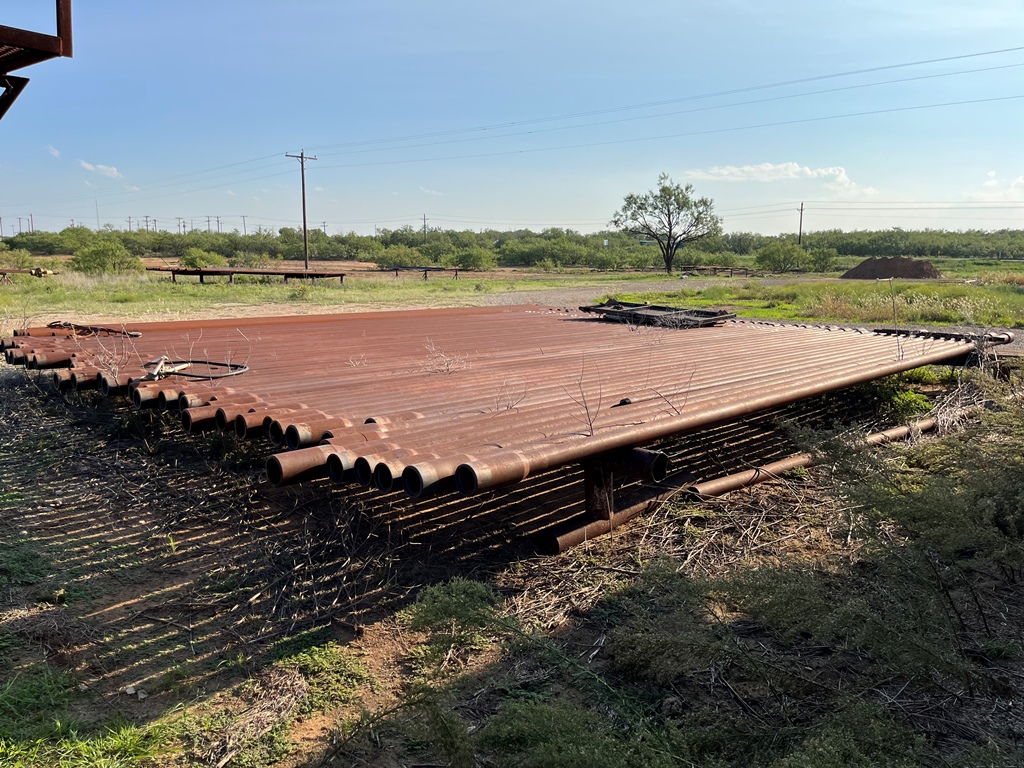

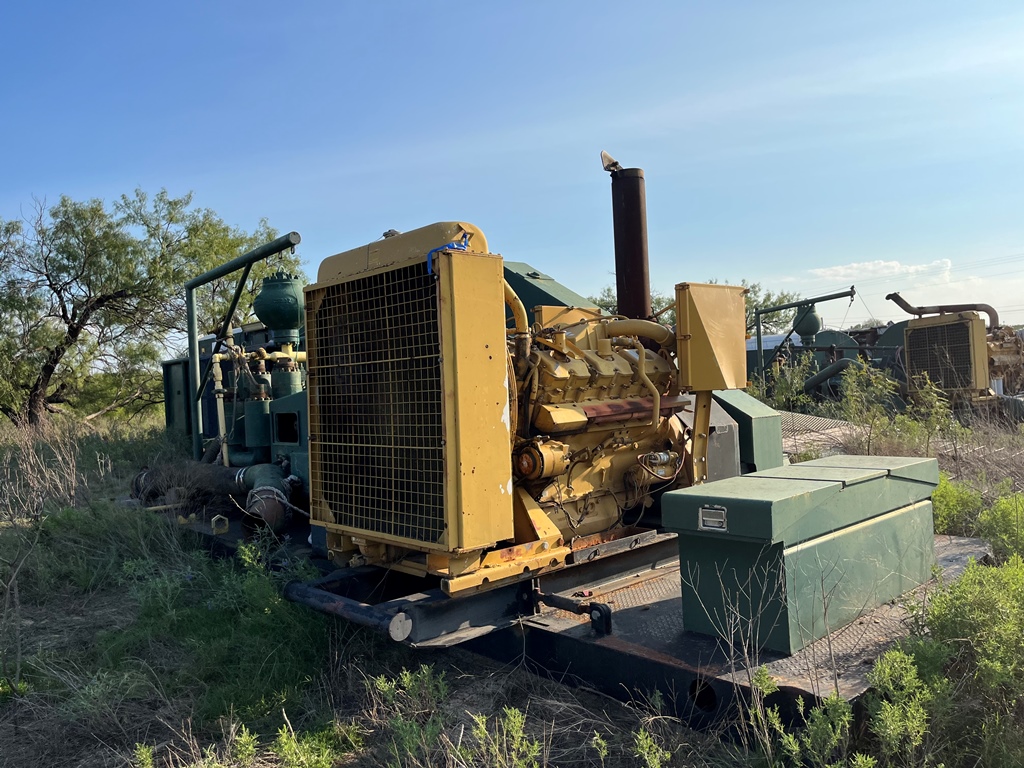

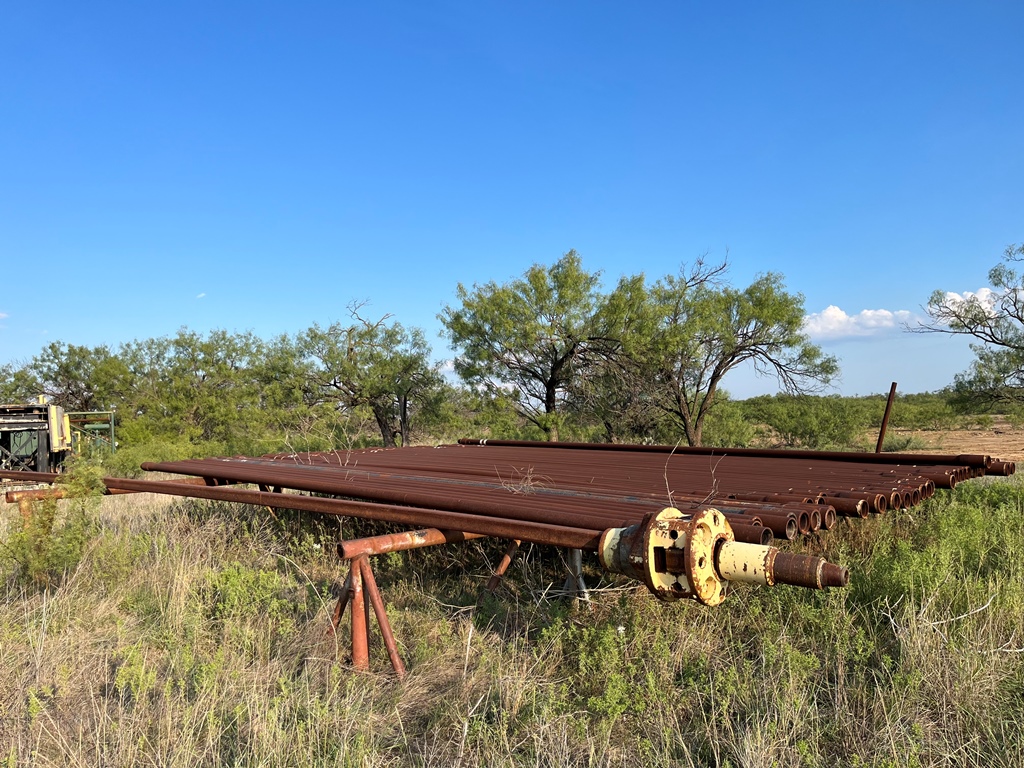

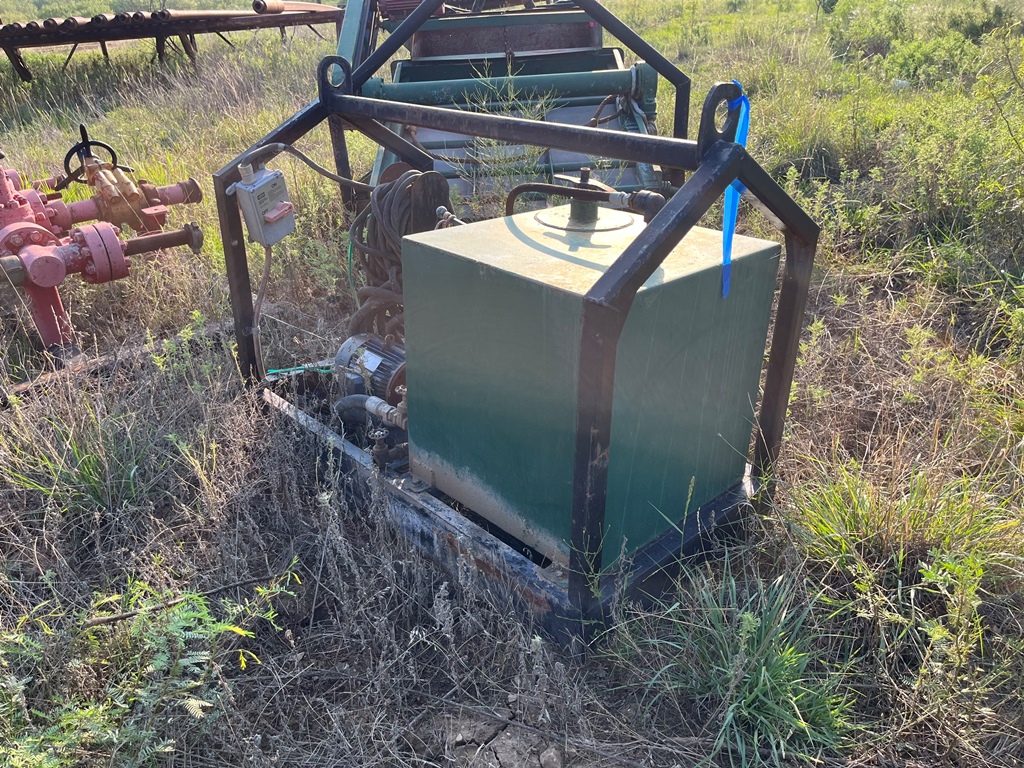

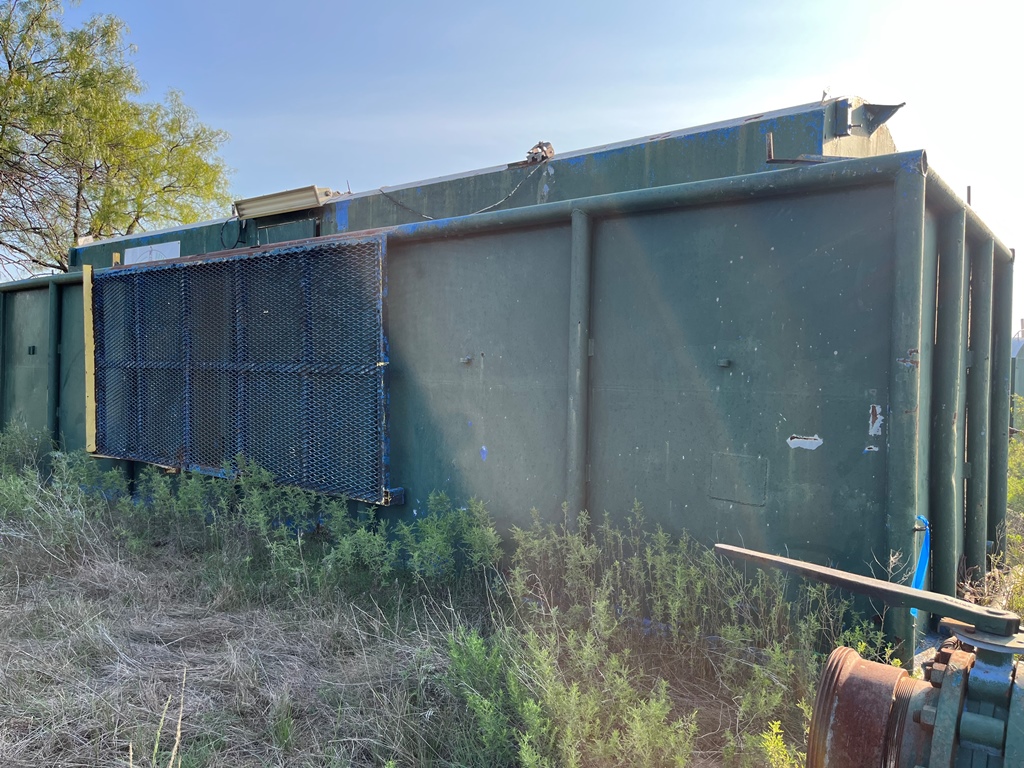

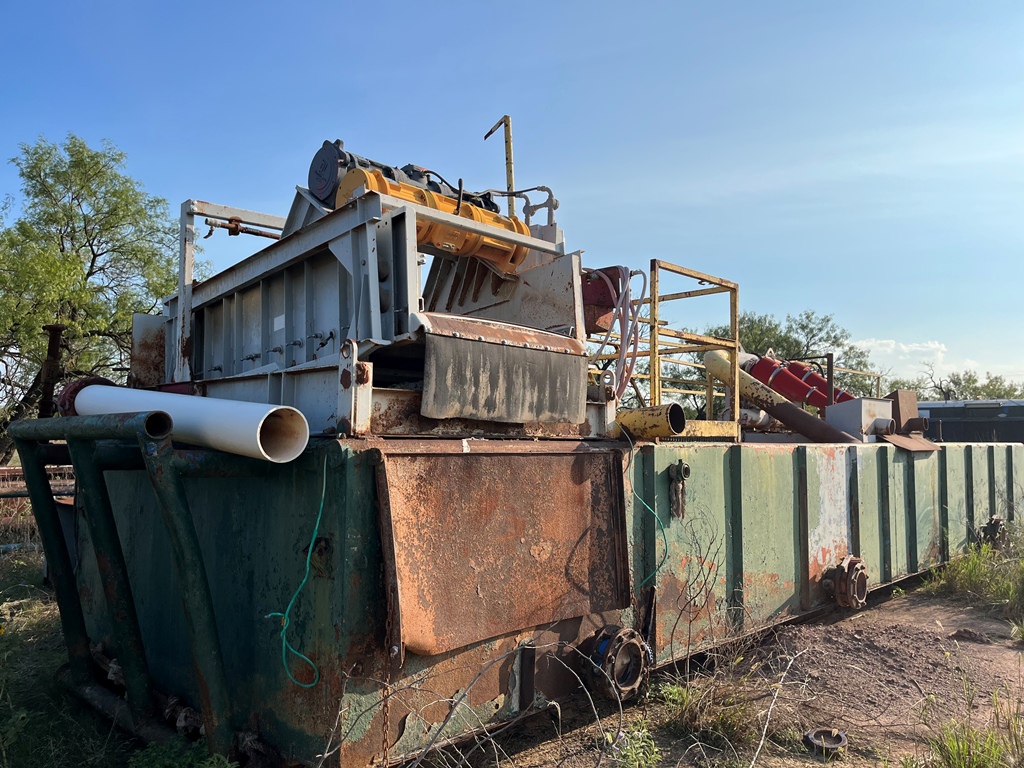

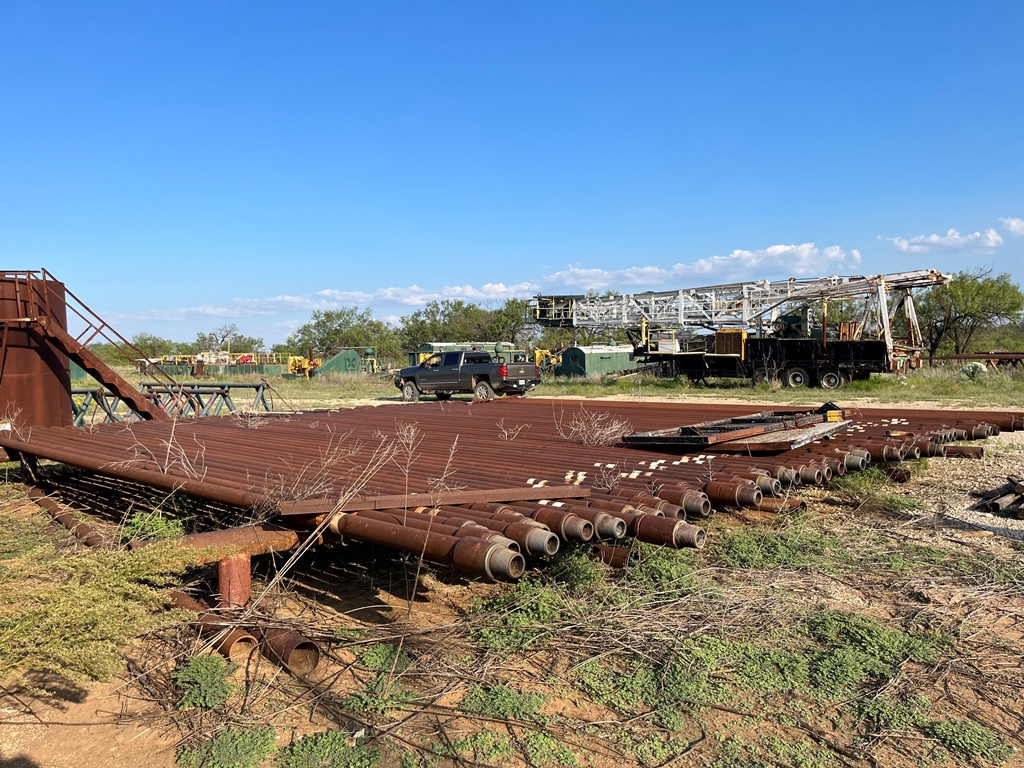

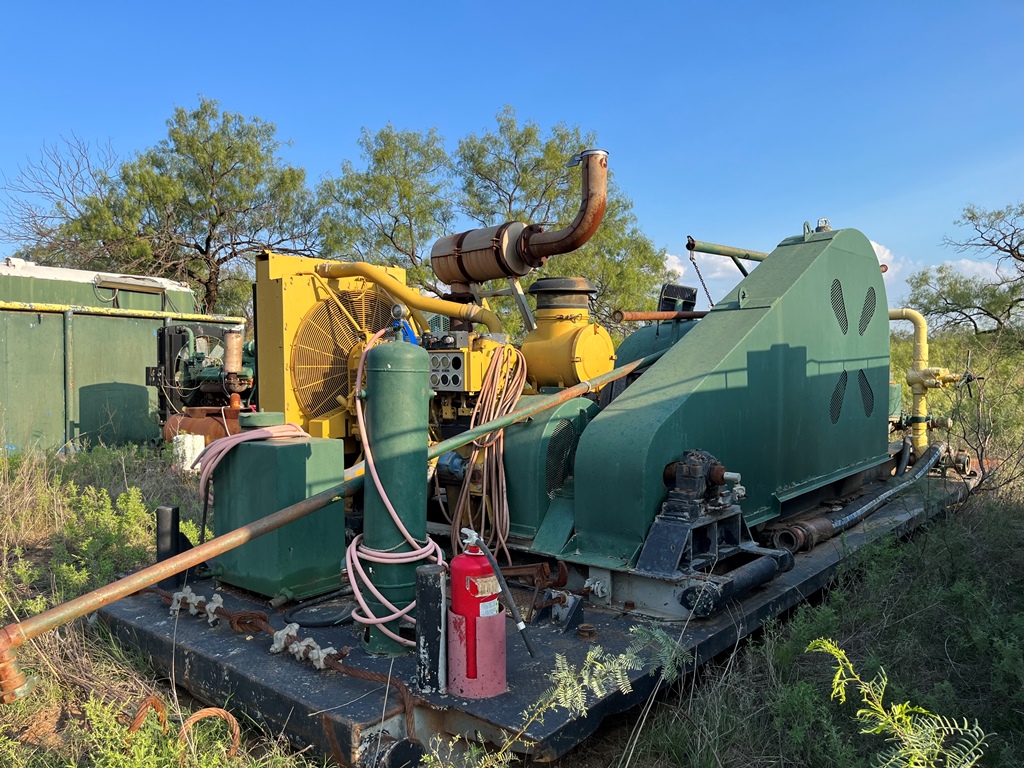

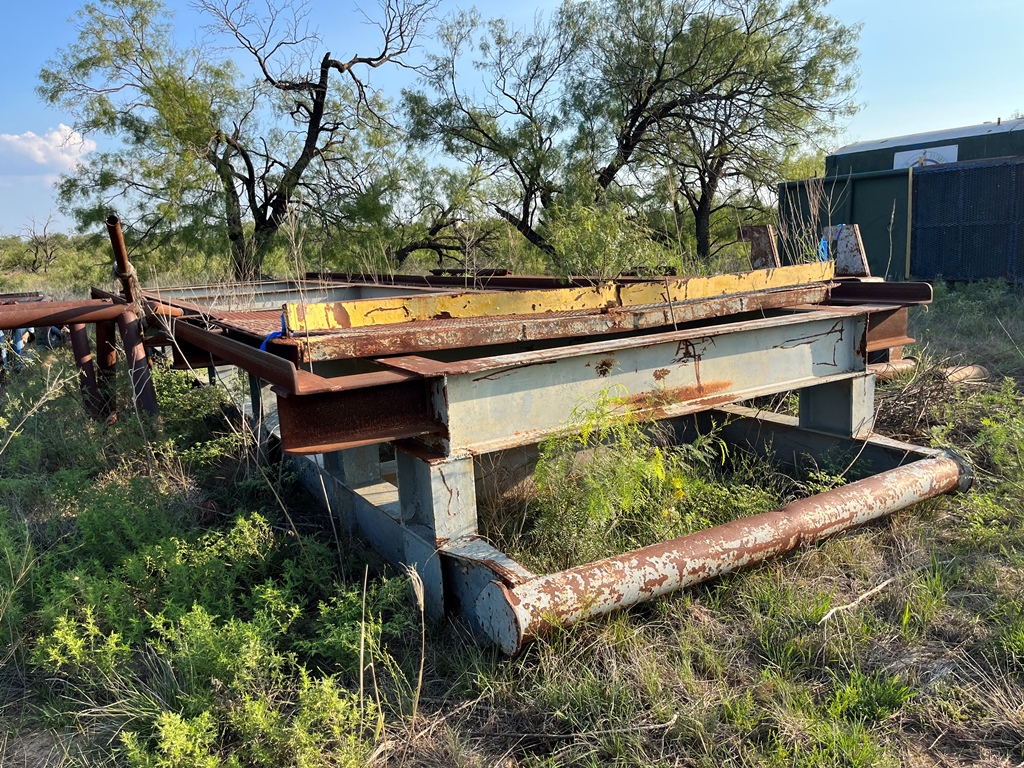

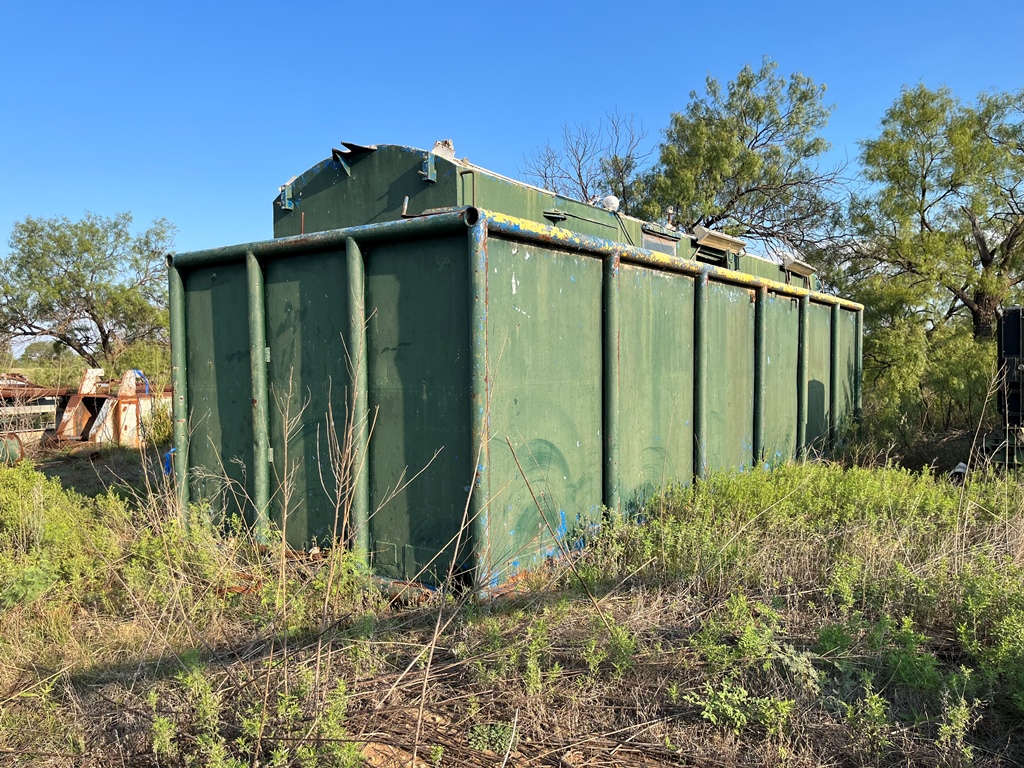

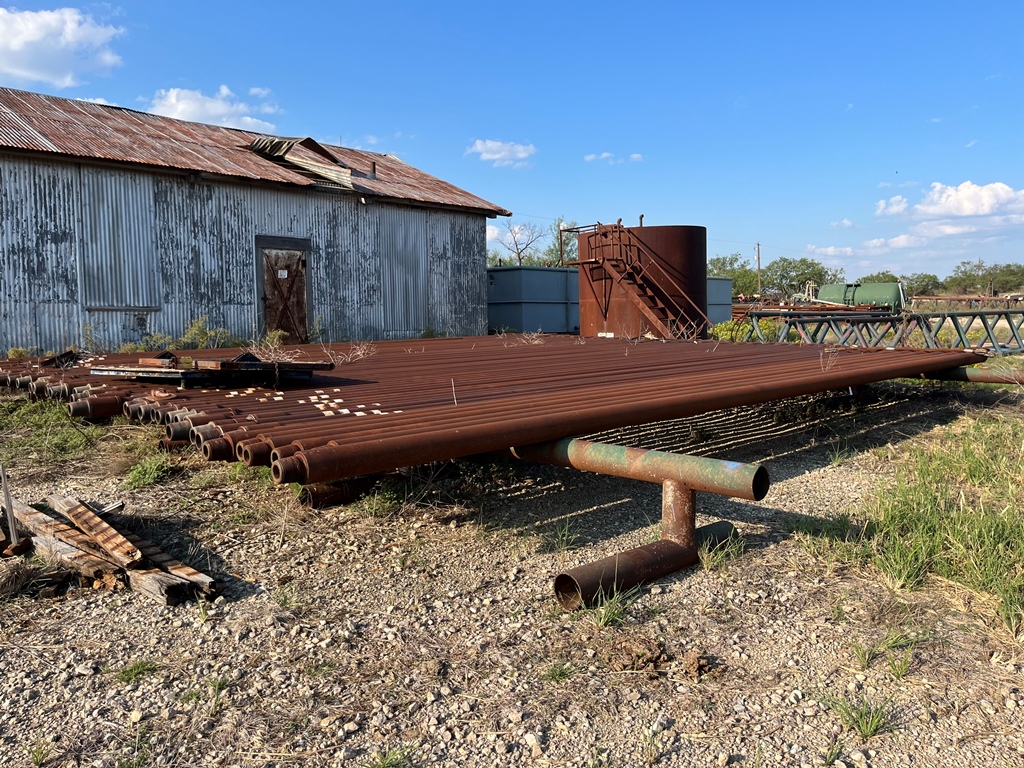

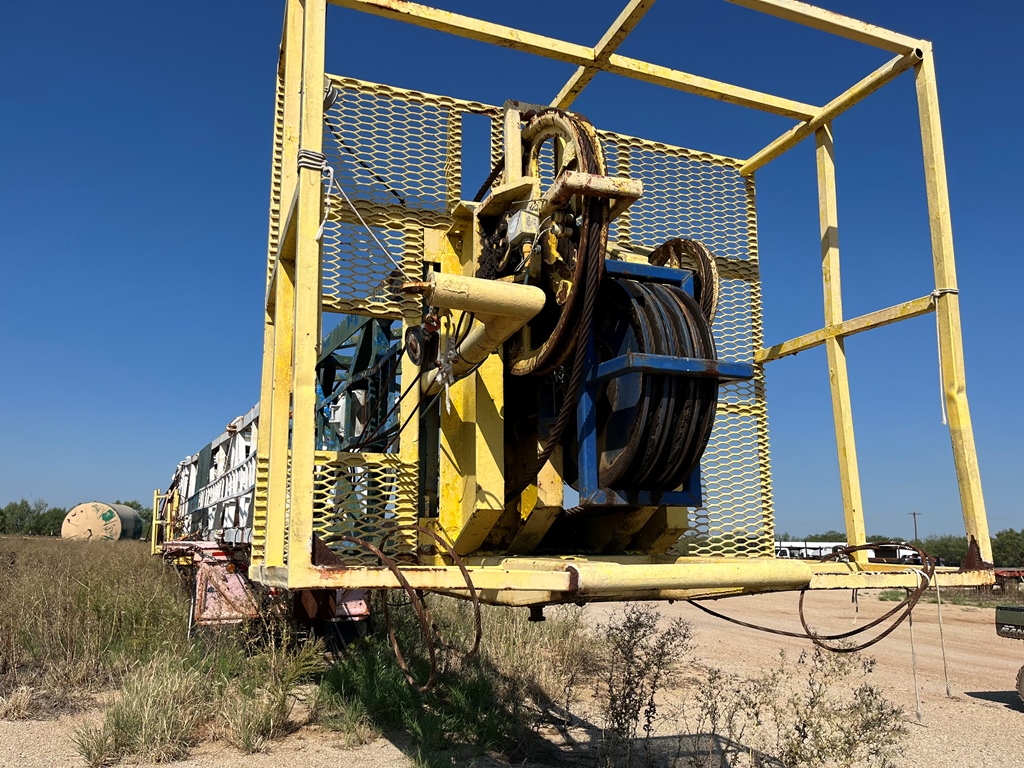

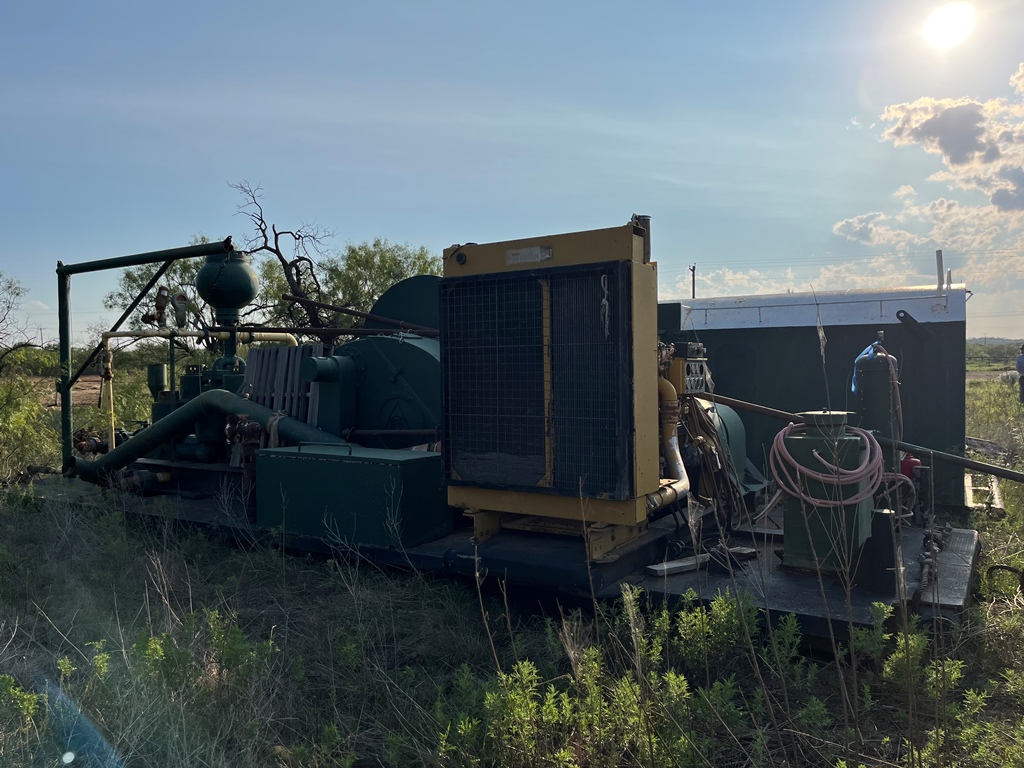

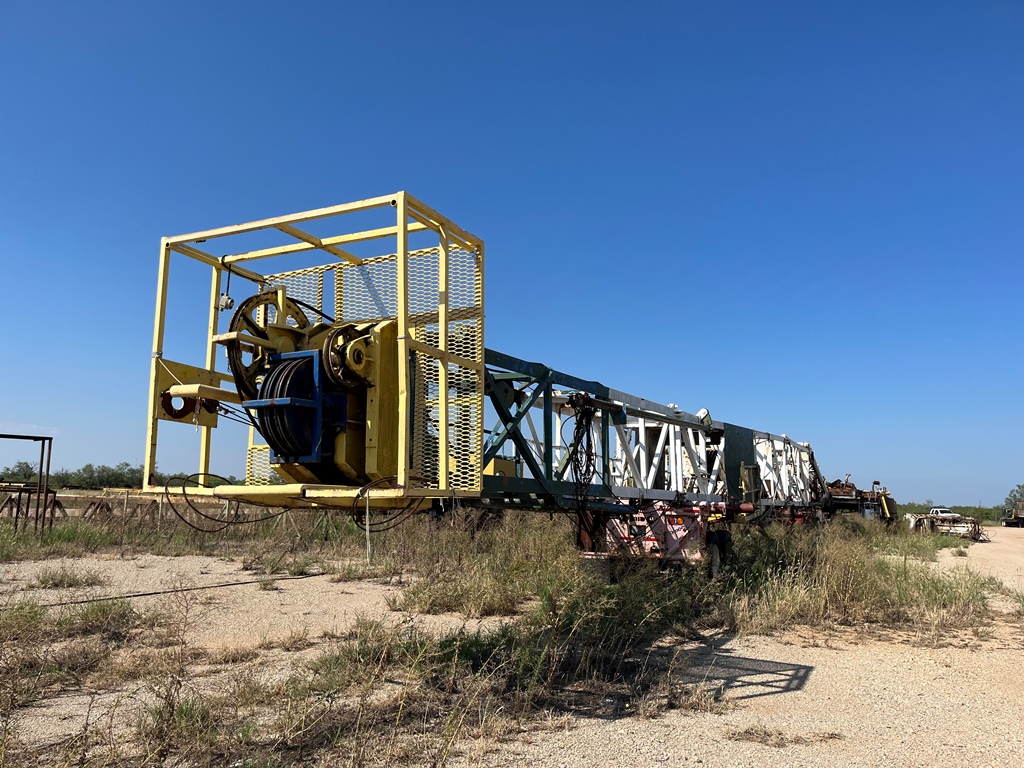

Derrick 104ft Oil Drilling Rig (MN291), Derrick: 104ft Lee C. Moore double jack-knife, 340,000lb max static pull (13ft 4in leg spread), rack back capacity: 8,500ft of 4 1/2 drill pipe, Full Circle Enterprises, Inc. 4-G CAT-3 SURVEY (2/12/15), Draw Works: Schaeffer Oilfield Service 6000, 450HP, max depth 7,000ft, Draw Works Engine: no engine available. Allison 955 torque converter, Mud Pump 1: EMSCO D-700 6in x 16in duplex, powered by CAT C3412E, (operating range 680-700HP / Max 735HP at 1800 RPM) Oteco shear relief valve, Mud Pump 2: EMSCO D-550 6in x 16in duplex, powered by CAT C18, Max output 536 gpm at 75 spm, 1727 psi, Oteco shear relief valve, Mud Mixing Pump: Mission Magnum 5in x 4in with 14in impeller (powered by National Electric 30 Hp centrifugal pump, 4in mud hopper, Steel Pits (2): 10ft x 40ft x 6ft, 475 bbl capacity, 5in x 4in x 14in Mission Magnum mud-circulating pump, Water Tank: 400 bbl capacity, Substructure: 8ft H x 18ft W x 38ft L substructure, KB 10 foot, Rotary Drive: EMSCO 17 1/2in rotary table with 160 ton IDECO shorty block and hook combo, 4 sheave, 125 ton Skytop Brewster NX, Shale Shaker: 3 screen Double Life Linear Shale Shaker, 500 gpm capacity with 4 2.5 Hp explosion proof motors, De-Sander: 10in horizontal, Blowout Preventer: 3,000 psi 11 3/4in Dorland-annular preventer with 3 inch 5,000 psi choke line and header, Closing Unit: primary- electrically activated hydraulic closing unit with 3,000 psi capacity valve and pump, powered by 5 Hp electric motor, pumps 8 gpm, Secondary- Baker hand pump with air over hydraulic accumulator, Drill Pipe: 4 1/2in 16.60# Grade E, XH, 169 joints, Drill Collars: 6 1/4in x 2 1/4in XH, 16 joints (90 lbs/ft).

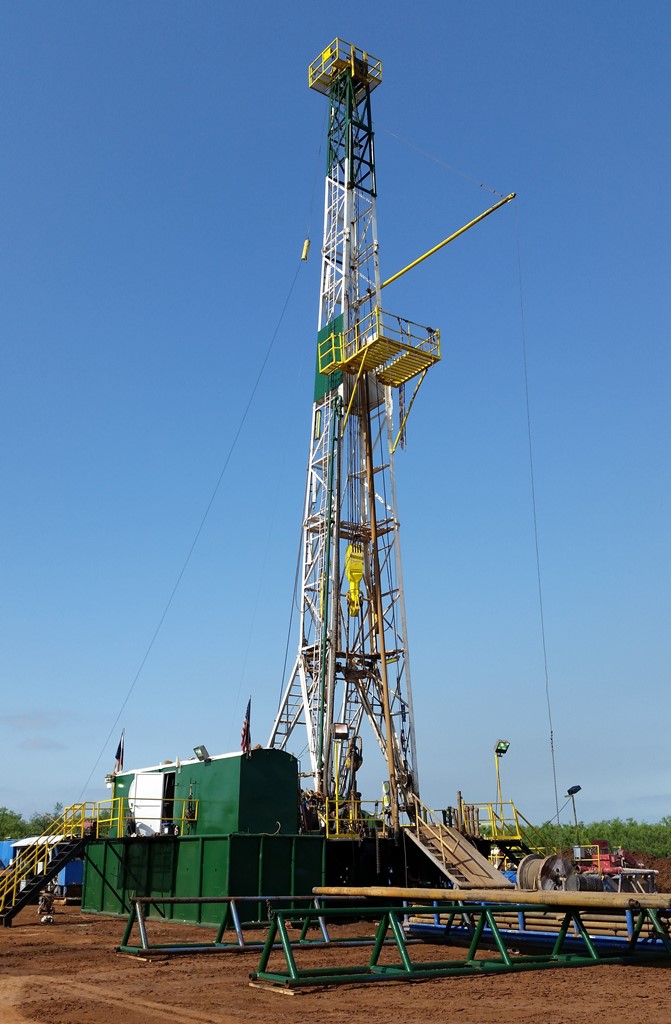

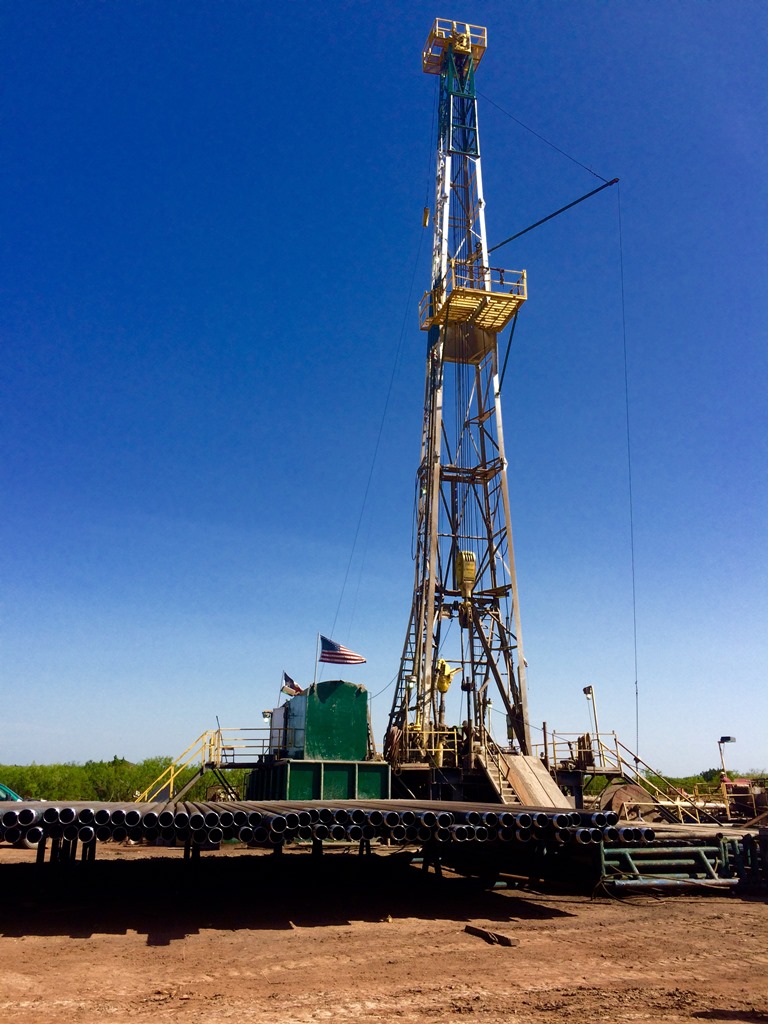

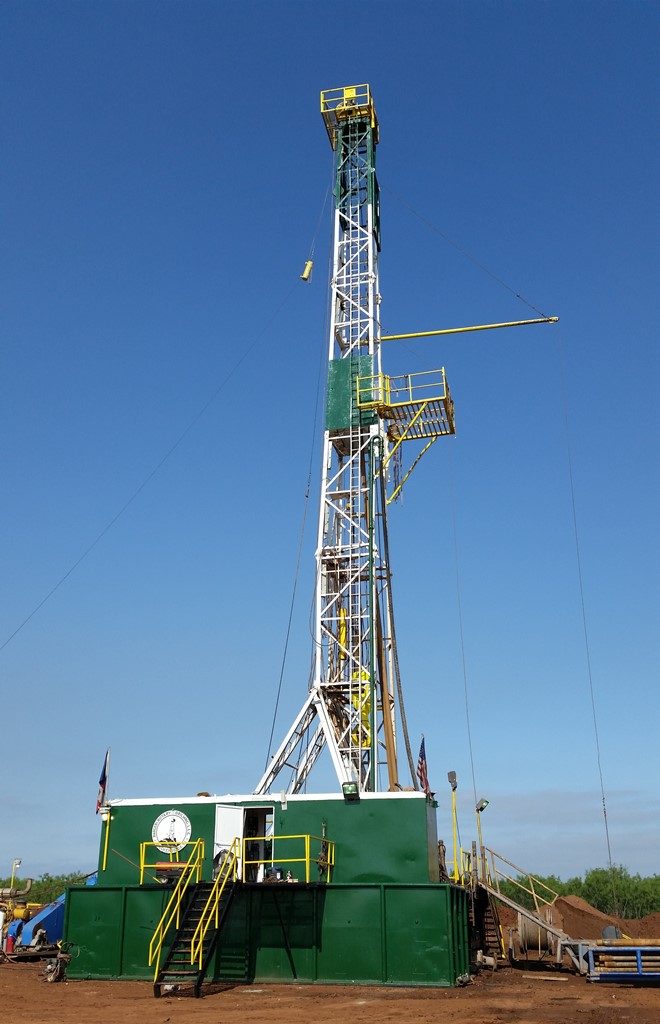

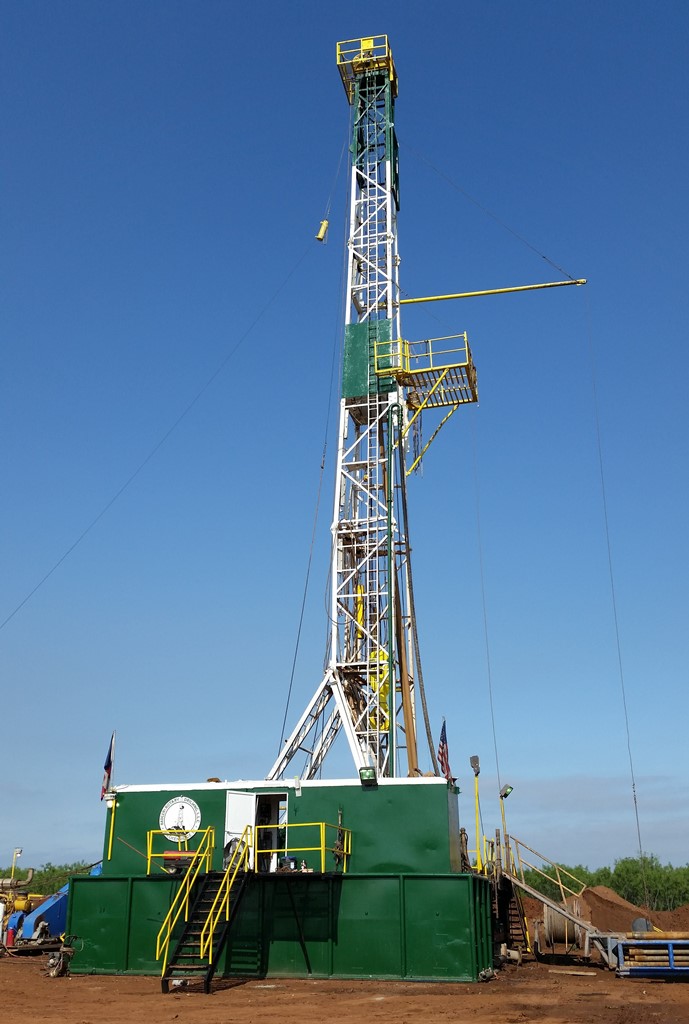

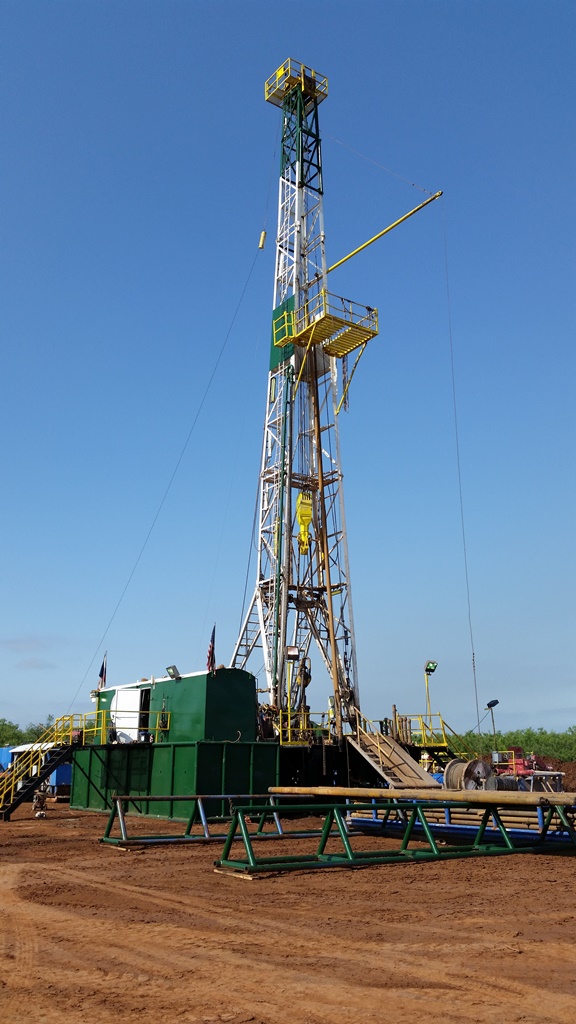

Notes: Some pictures are older to show the full drilling rig structure in working condition.
Derrick 104ft Oil Drilling Rig (MN291), Derrick: 104ft Lee C. Moore double jack-knife, 340,000lb max static pull (13ft 4in leg spread), rack back capacity: 8,500ft of 4 1/2 drill pipe, Full Circle Enterprises, Inc. 4-G CAT-3 SURVEY (2/12/15), Draw Works: Schaeffer Oilfield Service 6000, 450HP, max depth 7,000ft, Draw Works Engine: no engine available. Allison 955 torque converter, Mud Pump 1: EMSCO D-700 6in x 16in duplex, powered by CAT C3412E, (operating range 680-700HP / Max 735HP at 1800 RPM) Oteco shear relief valve, Mud Pump 2: EMSCO D-550 6in x 16in duplex, powered by CAT C18, Max output 536 gpm at 75 spm, 1727 psi, Oteco shear relief valve, Mud Mixing Pump: Mission Magnum 5in x 4in with 14in impeller (powered by National Electric 30 Hp centrifugal pump, 4in mud hopper, Steel Pits (2): 10ft x 40ft x 6ft, 475 bbl capacity, 5in x 4in x 14in Mission Magnum mud-circulating pump, Water Tank: 400 bbl capacity, Substructure: 8ft H x 18ft W x 38ft L substructure, KB 10 foot, Rotary Drive: EMSCO 17 1/2in rotary table with 160 ton IDECO shorty block and hook combo, 4 sheave, 125 ton Skytop Brewster NX, Shale Shaker: 3 screen Double Life Linear Shale Shaker, 500 gpm capacity with 4 2.5 Hp explosion proof motors, De-Sander: 10in horizontal, Blowout Preventer: 3,000 psi 11 3/4in Dorland-annular preventer with 3 inch 5,000 psi choke line and header, Closing Unit: primary- electrically activated hydraulic closing unit with 3,000 psi capacity valve and pump, powered by 5 Hp electric motor, pumps 8 gpm, Secondary- Baker hand pump with air over hydraulic accumulator, Drill Pipe: 4 1/2in 16.60# Grade E, XH, 169 joints, Drill Collars: 6 1/4in x 2 1/4in XH, 16 joints (90 lbs/ft).
Notes: Some pictures are older to show the full drilling rig structure in working condition.
