Lot# 121
Location: Pontiac, IL
Closed on:
July 19, 2022 | 12:35PM CDT
DESCRIPTION

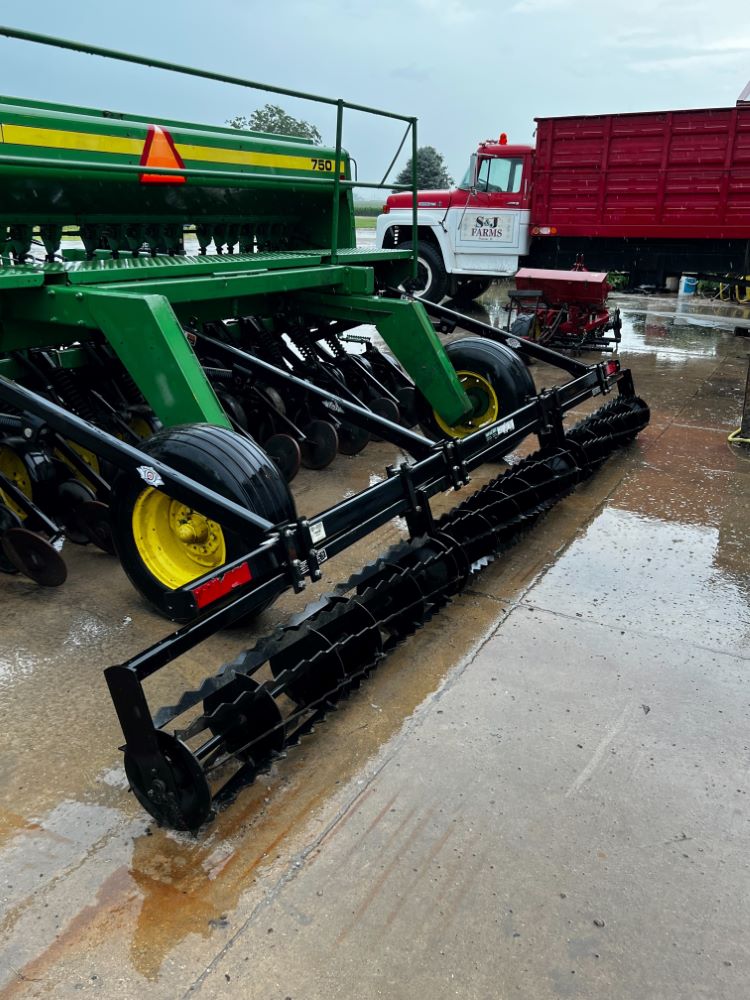

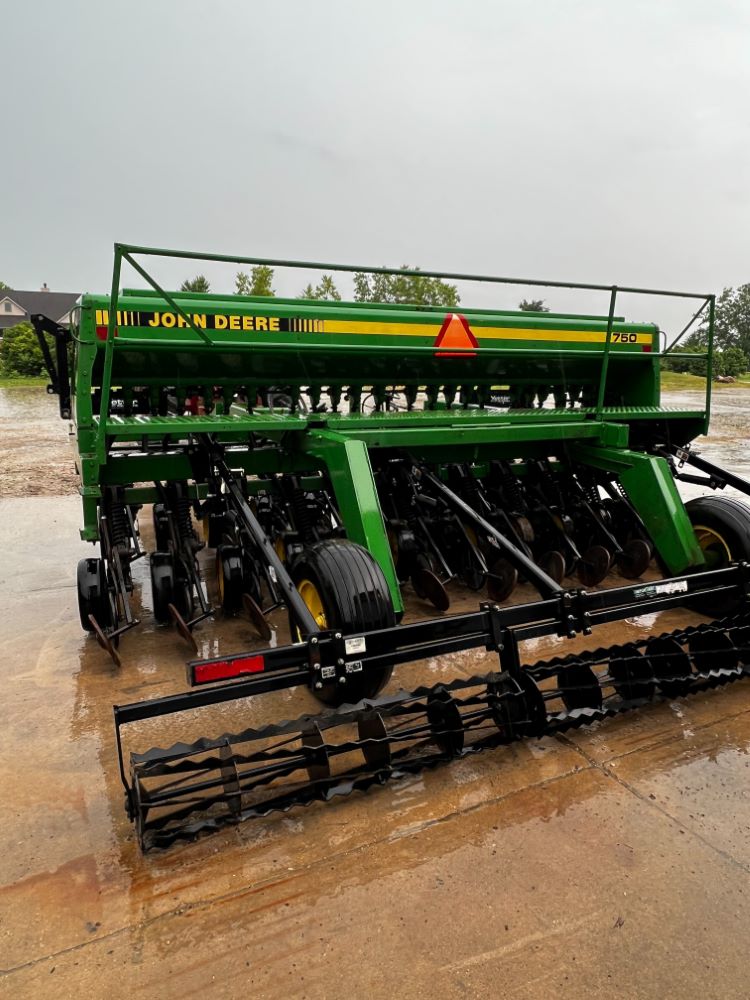

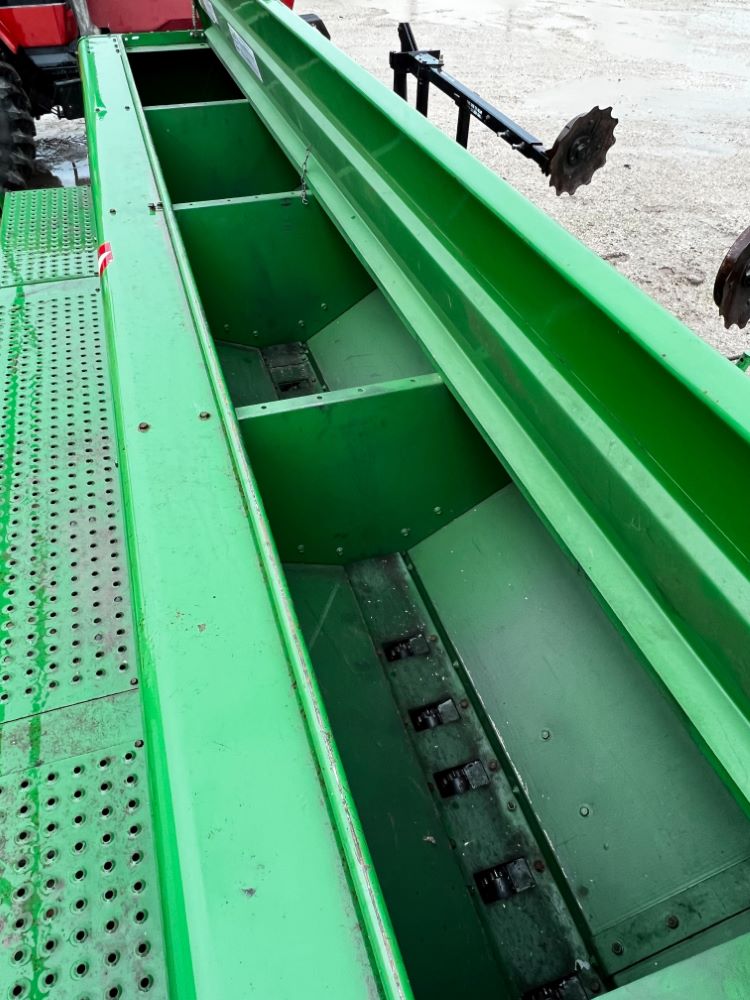

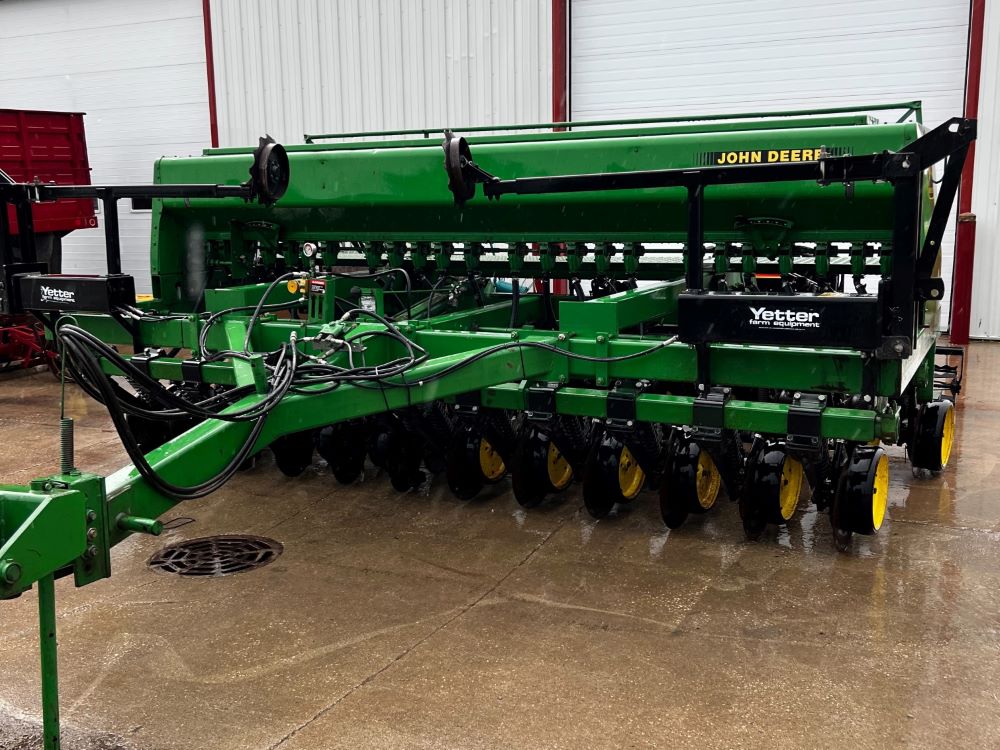

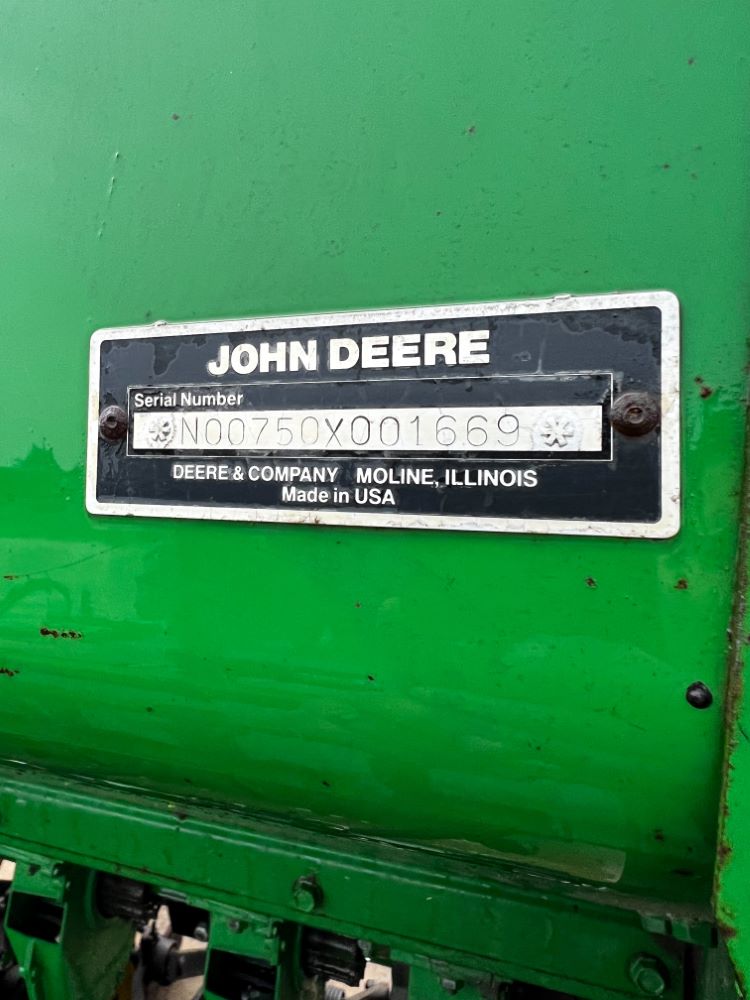

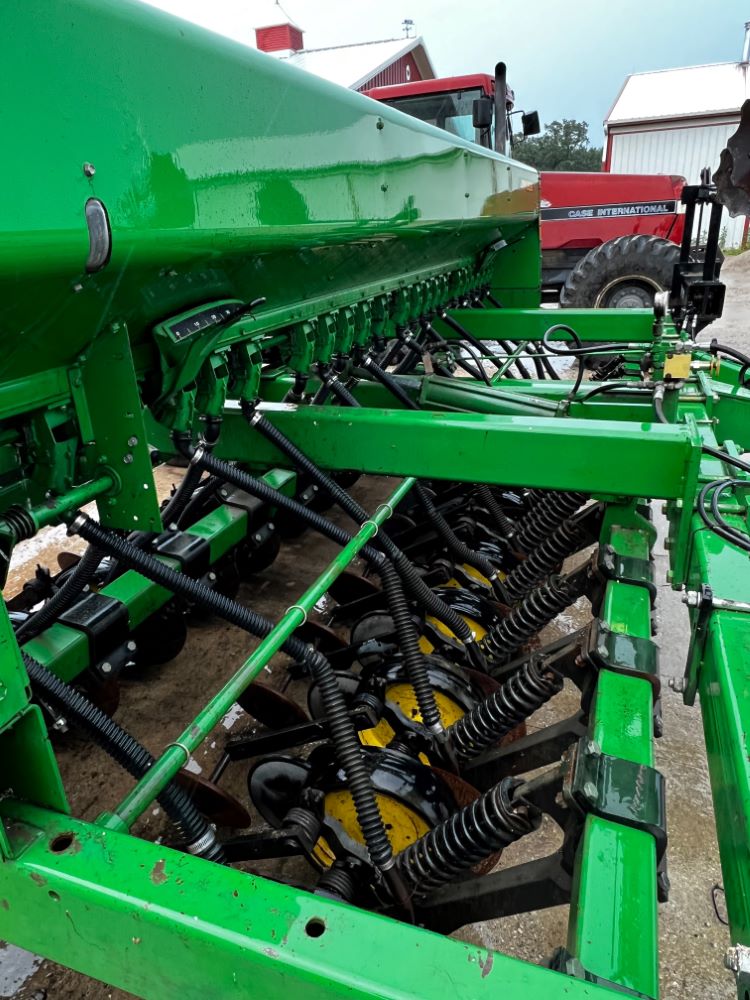

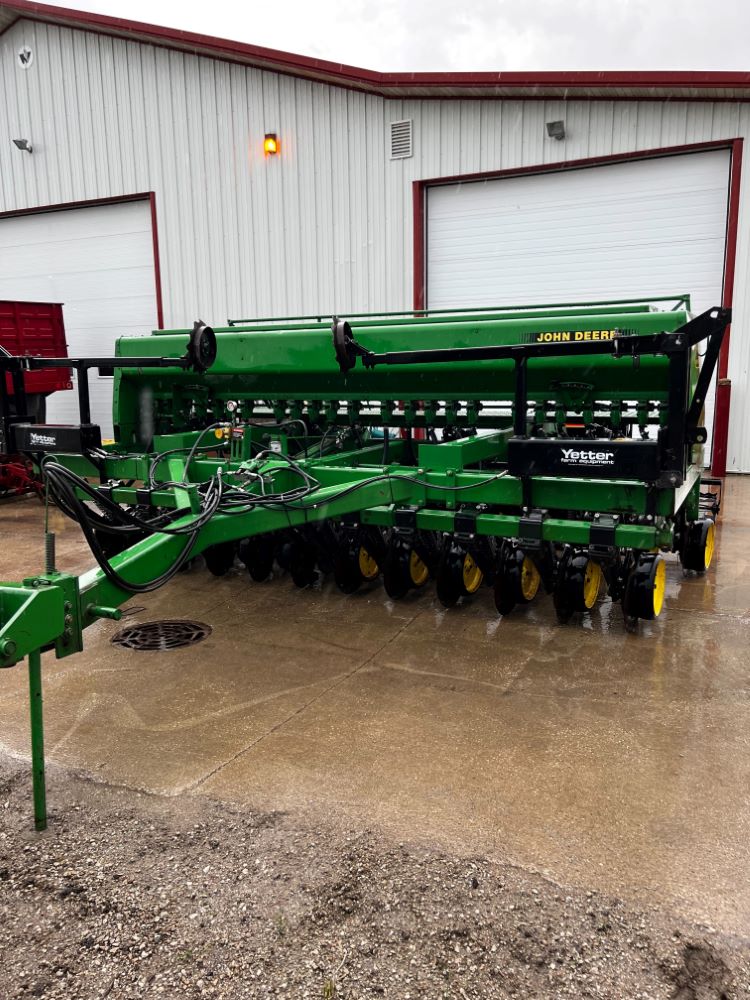

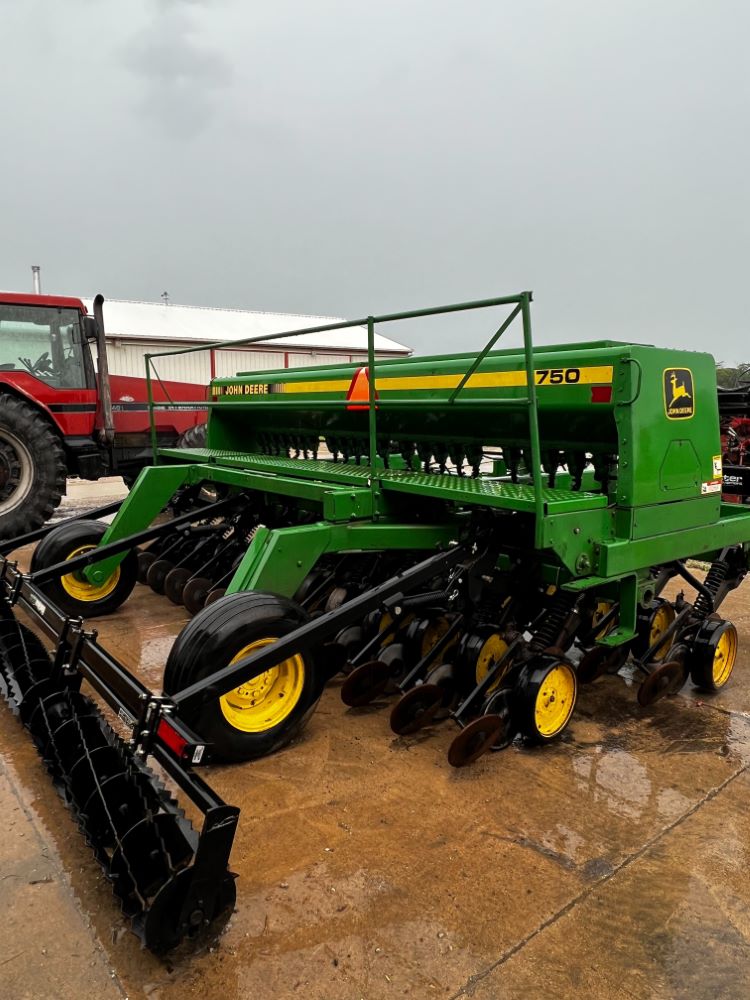

1989 John Deere 750 Drill (DL2160), 2pt hitch hook-up, 4-M version 750 w/two rockshafts, 7.5 inch row spacing with 24 row units total, working width is 13 feet 1.5in, total weight is 10,230lbs and the hitch weight of 4,630lbs, seed hopper capacity of 475.5 gallons and a hopper seed filling height of 100 inches, the planter ground leaden width is 8 inches, tractor HP requirements for operation is 110 HP, furrow openers- 18in diameter single disk opener w/ beveled edge, gauge wheels are 4.5inx16in and adjustable in 1/4in increments from .5in to 3.5in, press wheels are 1inx10in rubber wheels with down force adjustment range of five to 45 pounds, closing wheels are 1inx12in cast iron wheels at 15 degree angle with a downforce adjustment range of 26 to 43lbs, the active hydronic down pressure initial setting is 700psi, added features- Yetter hydraulic marker arms with a working pressure of 3000psi and a burst pressure of 12,000psi, brand new Unverferth 13.5ft roller never used, operators manual included, shed kept, great condition.
Notes:
1989 John Deere 750 Drill (DL2160), 2pt hitch hook-up, 4-M version 750 w/two rockshafts, 7.5 inch row spacing with 24 row units total, working width is 13 feet 1.5in, total weight is 10,230lbs and the hitch weight of 4,630lbs, seed hopper capacity of 475.5 gallons and a hopper seed filling height of 100 inches, the planter ground leaden width is 8 inches, tractor HP requirements for operation is 110 HP, furrow openers- 18in diameter single disk opener w/ beveled edge, gauge wheels are 4.5inx16in and adjustable in 1/4in increments from .5in to 3.5in, press wheels are 1inx10in rubber wheels with down force adjustment range of five to 45 pounds, closing wheels are 1inx12in cast iron wheels at 15 degree angle with a downforce adjustment range of 26 to 43lbs, the active hydronic down pressure initial setting is 700psi, added features- Yetter hydraulic marker arms with a working pressure of 3000psi and a burst pressure of 12,000psi, brand new Unverferth 13.5ft roller never used, operators manual included, shed kept, great condition.
Notes:
